The Texas Instruments LDC1051NHRT is a highly precise inductance-to-digital converter (LDC) that offers a reliable solution for a wide range of sensing applications. This innovative IC is designed to accurately measure small changes in inductance, making it an ideal choice for contactless sensing in industrial, automotive, and consumer electronics sectors.

Key Features

• High-Resolution Inductance Measurement: The LDC1051NHRT boasts a high-resolution 16-bit inductance measurement capability, enabling the detection of minute variations in inductance with great accuracy.
• Resonance Impedance Matching: With an integrated resonance impedance matching feature, this device ensures optimal sensor performance and simplifies the design process.
• Low Power Consumption: Designed for energy efficiency, the LDC1051NHRT operates with a low power consumption, making it suitable for battery-powered and portable applications.
• Programmable Frequency Range: The device supports a programmable frequency range from 5 kHz to 5 MHz, allowing for flexibility in sensor design and application.
• Digital Output: It offers a simple SPI (Serial Peripheral Interface) for communication, providing a direct digital output that can be easily interfaced with microcontrollers and other digital systems.

Applications

The LDC1051NHRT is versatile and can be used in various applications, including:

• Proximity sensing
• Position sensing
• Fluid level detection
• Material composition analysis
• Button replacements in touchless interfaces

Technical Specifications

Some of the technical specifications of the LDC1051NHRT include:

• Supply Voltage: 3.3V to 5V
• Operating Temperature: -40°C to +125°C

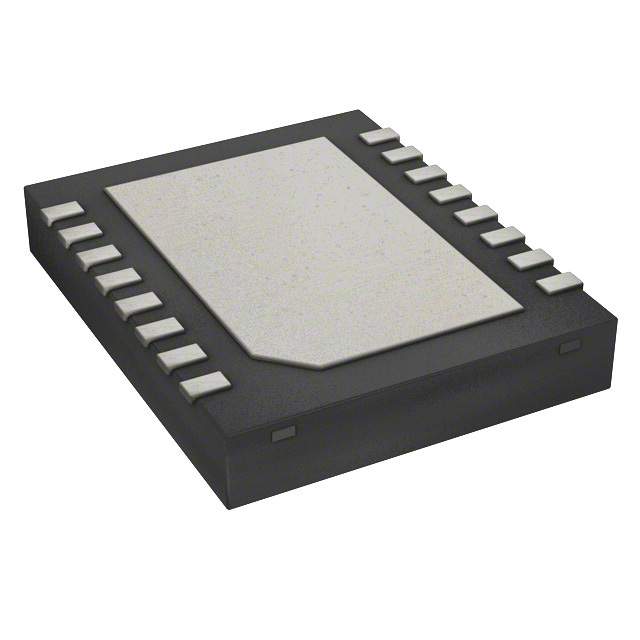

• Package: 16-pin WQFN
• RoHS Compliant

With its robust design and advanced features, the Texas Instruments LDC1051NHRT provides a sophisticated solution for designers looking to incorporate inductance measurement into their systems with minimal hassle and maximum efficiency.
