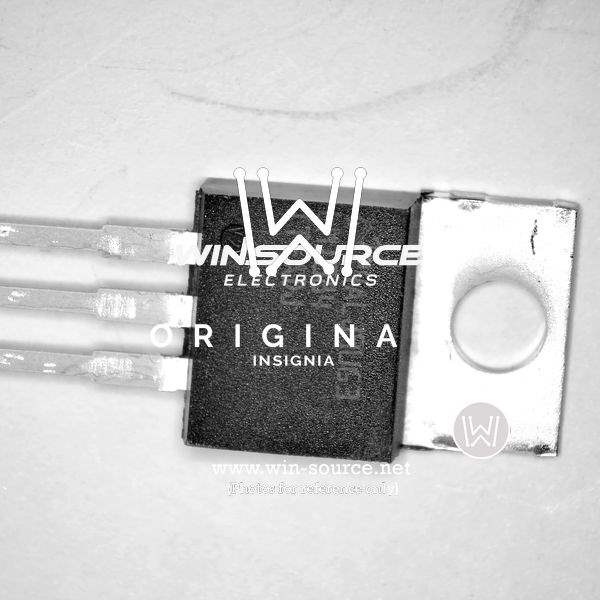

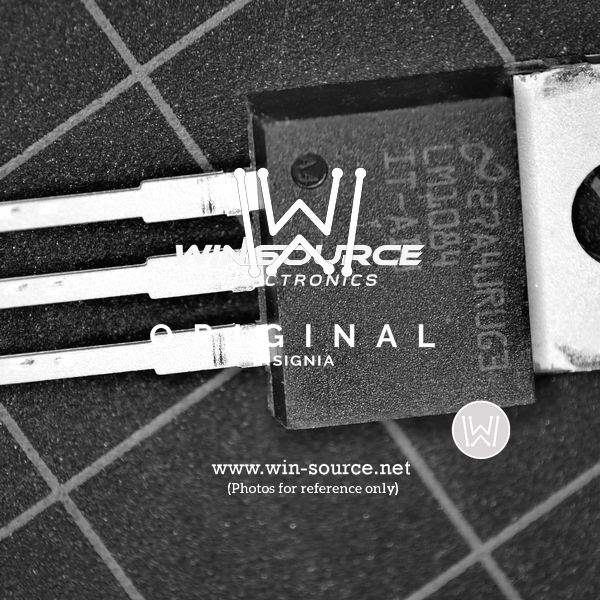

LM1084IT-ADJ Real Image LM1084IT-ADJ Real Image1 LM1084IT-ADJ Real Image2
Same model may have multiple batches, images only for reference.
LM1084IT-ADJ Real Image LM1084IT-ADJ Real Image1 LM1084IT-ADJ Real Image2
LM1084IT-ADJ Real Image LM1084IT-ADJ Real Image1 LM1084IT-ADJ Real Image2
Same model may have multiple batches, images only for reference.

LM1084IT-ADJ

Part No LM1084IT-ADJ
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description LDO Regulator Pos 1.2V to 15V 5A 3-Pin(3+Tab) TO-220 Rail / IC REG LDO ADJ 5A TO220-3
Datasheet
LM1084IT-ADJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 29V
Nominal Output Voltage (Min/Fixed) 1.25V
Maximum Output Voltage 27.5V
Dropout Voltage-Max 1.5V @ 5A
Output Current 5A
Operating Supply Current 10mA
PSRR 75dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Adjustable
Output Voltage 1.2 V to 15 V
Voltage - Dropout (Typical) 1.3V @ 5A
Mounting Through Hole
Case / Package TO-220-3
Win Source Part Number 091260-LM1084IT-ADJ
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Power Management
Family Name LM1084
Introduction Date September 01, 1999
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LM1084IT-ADJ CAD Model

Description

The LM1084IT-ADJ from Texas Instruments is a high-performance, adjustable voltage regulator that offers exceptional features and performance for a wide range of applications.

  • Output Current: Up to 5A
  • Efficiency: High
  • Dropout Voltage: Low
  • Line and Load Regulation: Excellent
  • Protection: Thermal protection and current limit features
  • Package: TO-220
