The LM139J/PB is a high-performance, precision quad differential comparator designed and manufactured by Texas Instruments. This integrated circuit is engineered to provide reliable and fast performance for a wide array of applications requiring voltage level detection and comparison.

Key Features

• Wide Voltage Range: The LM139J/PB operates over a wide range of single or dual supplies, making it versatile for various circuit configurations.
• Low Supply Current: It's designed for low power consumption, drawing minimal current from the power supply, which is beneficial for battery-powered devices.
• Low Input Bias Current: This characteristic ensures minimal effect on the rest of the circuit, preserving the integrity of the signal being compared.
• Low Input Offset Voltage: The comparator has a low input offset voltage, which enhances its accuracy in determining the difference between voltage levels.
• Fast Response Time: With its quick response to input changes, the LM139J/PB is suited for applications that require high-speed operations.
• Wide Operating Temperature Range: It is designed to function over a broad temperature range, making it suitable for industrial-grade applications.

Applications

The LM139J/PB is used in a variety of electronic applications, including:

• Control Systems
• Logic Voltage Level Detection
• Window Comparators
• Analog-to-Digital Converters
• High-Speed Signal Processing
• Automotive Systems
• Industrial Electronics

Product Specifications

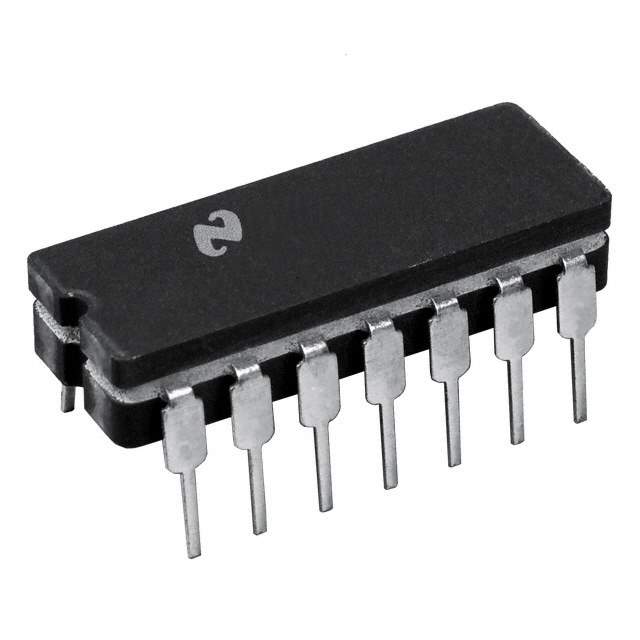

The LM139J/PB is available in a ceramic DIP package, ensuring robustness and durability. The product adheres to the stringent quality standards set by Texas Instruments and is designed for long-term reliability. It is also characterized for operation from -55°C to 125°C, catering to a wide range of environmental conditions.

Environmental and Quality

Texas Instruments is committed to environmental stewardship and the LM139J/PB is a reflection of this commitment. The product is lead-free and RoHS compliant, minimizing the environmental impact and making it suitable for use in various international markets.

For detailed technical specifications, application notes, and support resources, please refer to the Texas Instruments official website or contact their customer support team.
