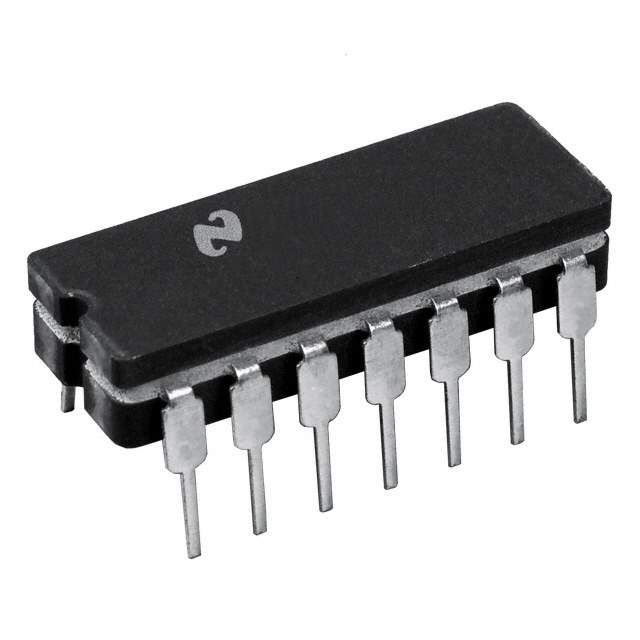

The LM148J/PB is a high-performance operational amplifier (op-amp) from Texas Instruments, renowned for its precision and stability. This quad operational amplifier is designed to offer a wide range of features that make it suitable for a multitude of electronic applications, including industrial, automotive, and consumer electronics.

Key Features

• Quad Operational Amplifiers: The LM148J/PB contains four independent op-amps in a single package, providing excellent space-saving benefits for complex circuits.
• Wide Operating Voltage Range: This device can operate from a supply voltage range of ±3V to ±18V, making it versatile for various power supply configurations.
• Low Input Bias Current: The input bias current is minimized, which is critical for high-impedance sensor applications and precision analog circuits.
• High Input Impedance: With a high input impedance, the op-amp minimizes the loading effect on the input source, preserving signal integrity.
• Low Offset Voltage: The low offset voltage allows for more accurate signal amplification, reducing error in signal processing applications.
• Short-Circuit Protection: The LM148J/PB features built-in short-circuit protection, enhancing the reliability and longevity of the device.
• Overload Protection: Overload protection on the input and output ensures that the op-amp remains functional under extreme conditions.

Applications

The versatility of the LM148J/PB makes it an ideal choice for a broad array of applications, such as:

• Summing amplifiers
• Voltage followers
• Integrators or differentiators
• Analog filters
• Data acquisition systems
• Audio processing
• Signal conditioning

In summary, the LM148J/PB from Texas Instruments is a reliable and efficient solution for designers looking to incorporate a high-quality operational amplifier into their electronic designs. Its combination of multiple amplifiers in one package, along with its robust feature set, ensures optimal performance in a wide range of applications.
