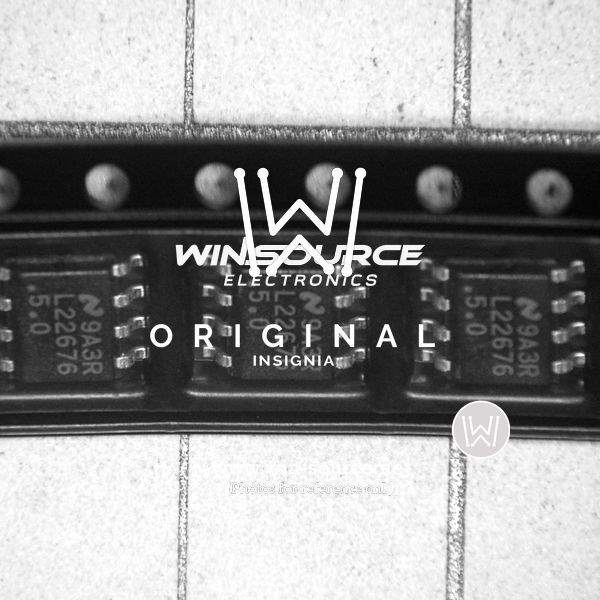

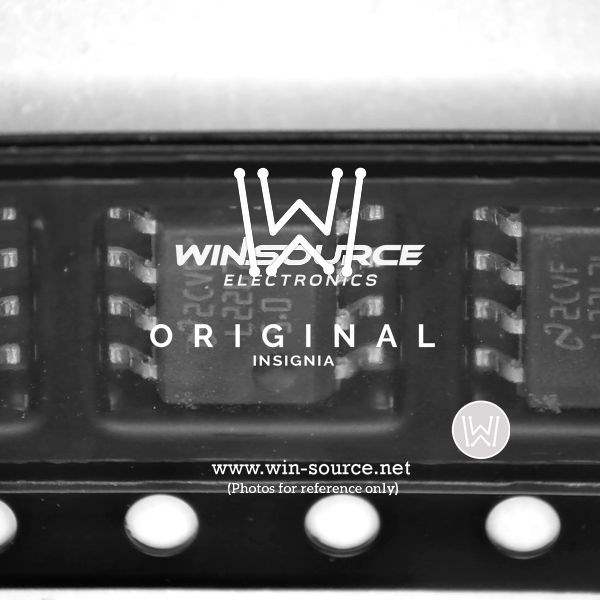

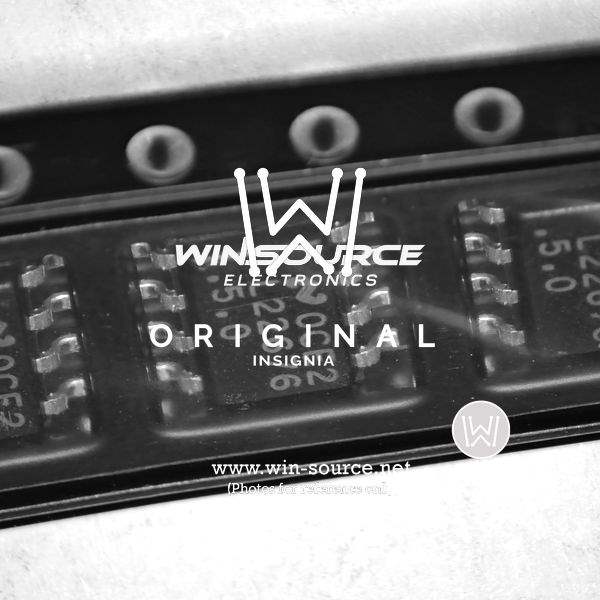

The LM22676MR-5.0 is a highly efficient, monolithic switching voltage regulator designed by Texas Instruments. This component boasts a step-down (buck) regulator configuration that delivers a fixed output voltage of 5.0V from a higher input voltage, with an impressive output current capability of up to 3A. The LM22676MR-5.0 is part of the LM22676 series, well-known for their reliability and performance in a wide range of applications.

Key Features:

• Output Voltage: Fixed 5.0V with high accuracy.
• Output Current: Capable of delivering up to 3A, suitable for a variety of applications.
• Efficiency: High conversion efficiency, which can reach up to 95%, depending on operating conditions.
• Operating Frequency: Adjustable from 50 kHz to 1 MHz or fixed 500 kHz.
• Thermal Performance: Enhanced thermal performance with an operating temperature range from -40°C to +125°C.
• Protection Features: Includes thermal shutdown, current limit, and under-voltage lockout (UVLO) for improved safety and reliability.
• Package: Available in an MSOP-10 (PowerPAD™) package, which aids in efficient heat dissipation and space-saving on the PCB.

Applications:

The LM22676MR-5.0 is suitable for a diverse array of applications, including but not limited to:

• Industrial power systems
• Automotive electronics
• Telecommunications equipment
• Networking and data communication devices
• Point-of-load power supplies

Quality and Support:

Texas Instruments is renowned for its commitment to quality and customer support. The LM22676MR-5.0, like all TI products, is supported by comprehensive technical documentation, including datasheets, application notes, and design tools. This ensures that engineers can efficiently implement the regulator into their designs with confidence, backed by TI's expertise and resources.
