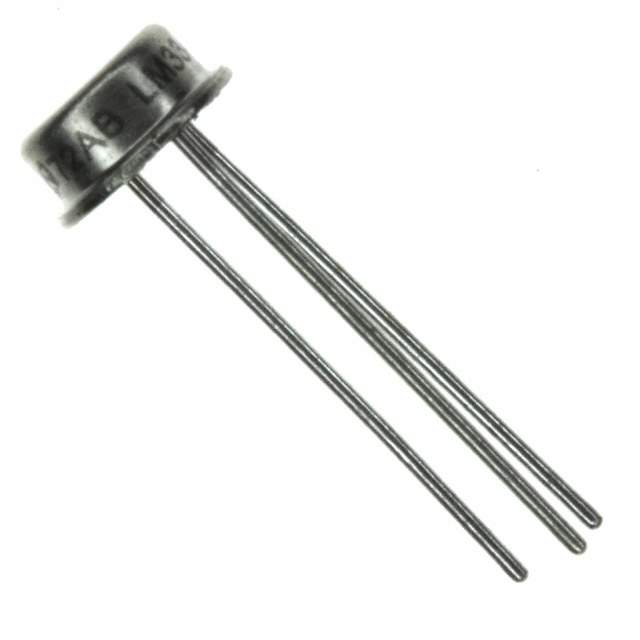

LM236AH2.5 Real Image
Same model may have multiple batches, images only for reference.

LM236AH2.5

Part No LM236AH2.5
Manufacturer Texas Instruments
Catalog PMIC - Voltage Reference
Description IC VREF SHUNT 2.49V TO46-3
Datasheet
LM236AH2.5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Bulk
Status Obsolete(EOL)
Reference Type Shunt
Output Type Fixed
Nominal Output Voltage (Min/Fixed) 2.49V
Output Current 10mA
Tolerance ±1%
Current - Cathode 400μA
Temperature Range - Operating -25°C to 85°C (TA)
Mounting Through Hole
Case / Package TO (NDT)
Win Source Part Number 071041-LM236AH2.5
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM236AH2.5 CAD Model

Description

The LM236AH2.5 is a precision voltage reference product manufactured by Texas Instruments, an American technology company that designs and manufactures semiconductors and various integrated circuits.

  • Output Voltage: 2.5 volts
  • Input Voltage Range: 4.5 volts to 40 volts
  • Temperature Coefficient: 30ppm/°C
  • Initial Accuracy: 1%
  • Package: TO-46
