LM2596SX-3.3

Part No LM2596SX-3.3
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description Conv DC-DC 4.5V to 40V Inv/Step Down Single-Out 3.3V 3A 6-Pin(5+Tab) DDPAK T/R / IC REG BUCK 3.3V 3A TO263-5
Datasheet
LM2596SX-3.3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Purpose Step-Down
Topology Buck
Output Type Fixed
Number of Outputs 1
Minimum Input Voltage 4.5V
Maximum Input Voltage 40V
Nominal Output Voltage (Min/Fixed) 3.3V
Output Current 3A
Frequency - Switching 150kHz
Synchronous Rectifier No
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package DDPAK/TO-263-5
Win Source Part Number 089512-LM2596SX-3.3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LM2596
Introduction Date December 01, 1997
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031

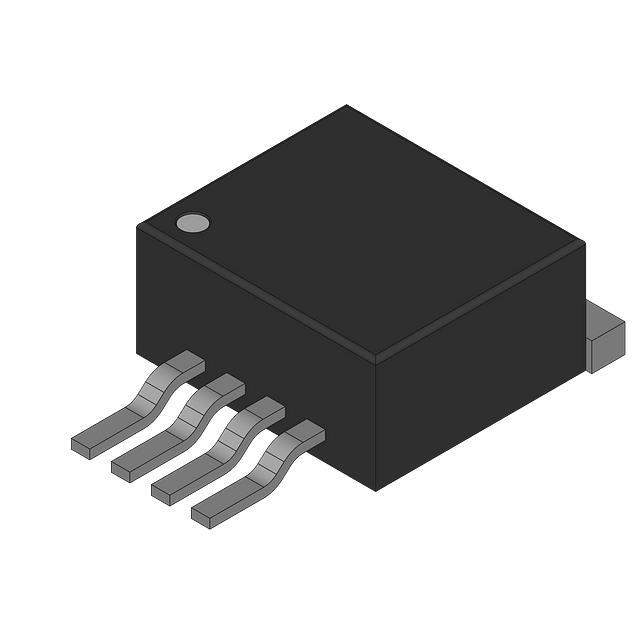

Ultra Librarian 3D Model Ultra Librarian LM2596SX-3.3 CAD Model

Description

The LM2596SX-3.3 from Texas Instruments is a highly efficient, monolithic, step-down voltage regulator that is designed to provide all the active functions required to drive a positive-to-negative converter.

  • Output Current: Up to 3A
  • Output Voltage: 3.3V
  • Efficiency: Up to 92%
  • Fixed Frequency: 150kHz
  • Protection Features: Thermal shutdown and current limit protection
  • Package: TO-263
