Product Overview: LM2596T-ADJ/LF02 by Texas Instruments

The LM2596T-ADJ/LF02 is a versatile and robust voltage regulator integrated circuit (IC) from Texas Instruments, designed to cater to a wide range of power supply applications. It is a part of the LM2596 series of regulators, which are known for their high efficiency, ease of use, and functional reliability. This particular model is an adjustable version, allowing users to set the output voltage to their desired level through the use of external resistors.

Key Features

• Adjustable Output Voltage: The LM2596T-ADJ/LF02 allows the user to adjust the output voltage from 1.23V to 37V, providing a flexible solution for various applications.
• High Efficiency: This regulator is capable of delivering up to 3A of output current with high efficiency, which can be up to 80% or more, minimizing heat dissipation and energy loss.
• Wide Input Voltage Range: It can handle an input voltage range from 4.5V to 40V, making it suitable for a broad array of input sources.
• Thermal Shutdown and Current Limit Protection: The built-in thermal shutdown and current limit protections ensure the safety and longevity of the IC under extreme conditions.
• Simple External Components: The LM2596T-ADJ/LF02 requires minimal external components, facilitating an easy and compact circuit design.

Applications

• Switching power supplies
• Automotive applications
• Powering LEDs and microcontrollers
• Battery chargers
• Pre-regulator for linear regulators

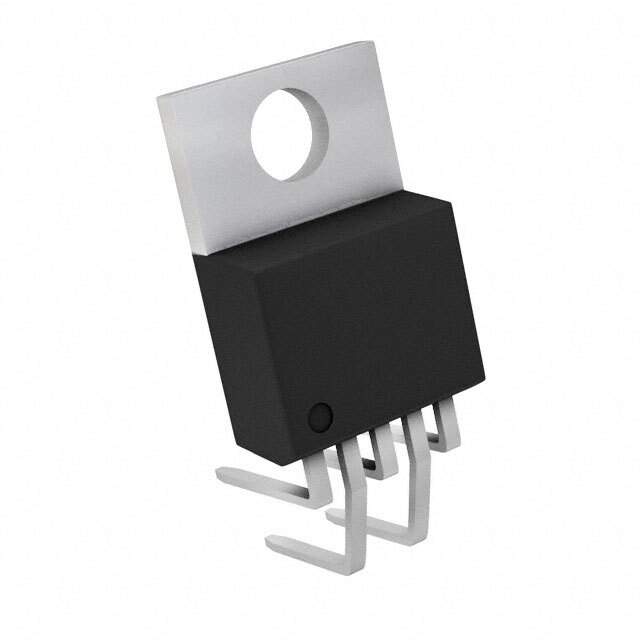

The LM2596T-ADJ/LF02 is packaged in a TO-220 form factor, which is well-suited for through-hole mounting and offers good thermal performance. Its robust design and comprehensive features make it an ideal choice for designers looking for a reliable and efficient voltage regulation solution. Whether you are developing a consumer electronics product, an automotive power system, or a sophisticated industrial machine, the LM2596T-ADJ/LF02 from Texas Instruments is a solid choice for your voltage regulation needs.
