The LM2599SX-3.3, manufactured by Texas Instruments, is a highly efficient, step-down voltage regulator that is part of their Simple Switcher® series. This regulator is designed to provide a fixed output voltage of 3.3V, making it ideal for a wide range of applications, including but not limited to consumer electronics, embedded systems, and industrial equipment.

Key Features

• Output Voltage: Fixed 3.3V with high precision.
• Output Current: Capable of delivering up to 3A of continuous output current.
• Efficiency: High-efficiency operation with a typical efficiency rating of up to 77%, which can vary depending on input voltage and load conditions.
• Switching Frequency: 150 kHz fixed frequency internal oscillator.
• Thermal Shutdown: Built-in thermal shutdown function to protect the device from overheating.
• Voltage Protection: Under-voltage lockout and over-voltage protection ensure the stability and safety of your circuit.

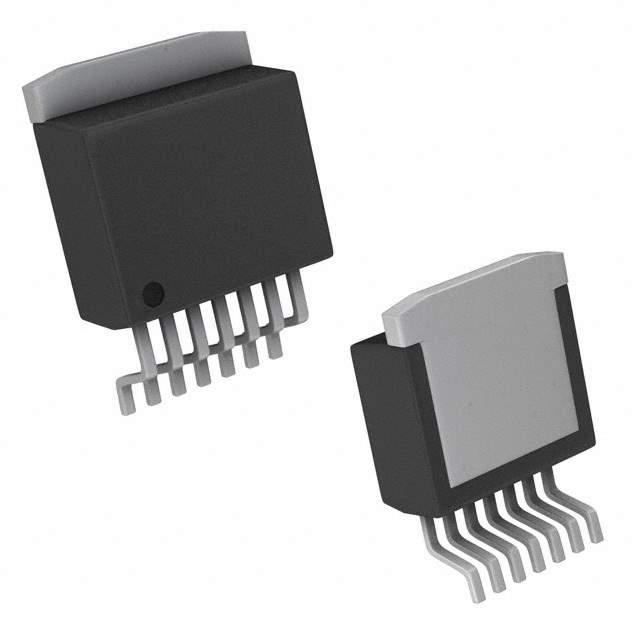

• Package: Available in a small surface-mount package (TO-263), which is suitable for automated assembly processes and saves board space.

Applications

The LM2599SX-3.3 is versatile and can be used in a variety of applications, including:

• Power supplies for digital systems like microprocessors, FPGAs, and DSPs.
• Point-of-load conversions from a higher voltage down to 3.3V required by certain circuit components.
• Portable devices where battery life is critical, thanks to its high efficiency.
• Industrial control systems requiring a stable and reliable power source.

Design Support

Texas Instruments provides comprehensive design support for the LM2599SX-3.3, including datasheets, reference designs, and evaluation modules. Engineers can access a wealth of resources to simplify the design process and speed up product development.

Conclusion

The LM2599SX-3.3 from Texas Instruments is a robust and reliable solution for a variety of power regulation needs. Its combination of features, including high efficiency, thermal protection, and compact packaging, make it an excellent choice for designers looking to optimize their power management systems.
