LM2608ATLX-1.8/NOPB

Part No LM2608ATLX-1.8/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BCK PROG 0.4A SYNC 10USMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Purpose Step-Down
Topology Buck
Output Type Programmable
Number of Outputs 1
Minimum Input Voltage 2.8V
Maximum Input Voltage 5.5V
Nominal Output Voltage (Min/Fixed) 1.5V, 1.8V
Output Current 400mA
Frequency - Switching 610kHz
Synchronous Rectifier Yes
Temperature Range - Operating -35°C to 85°C (TA)
Mounting SMD (SMT)

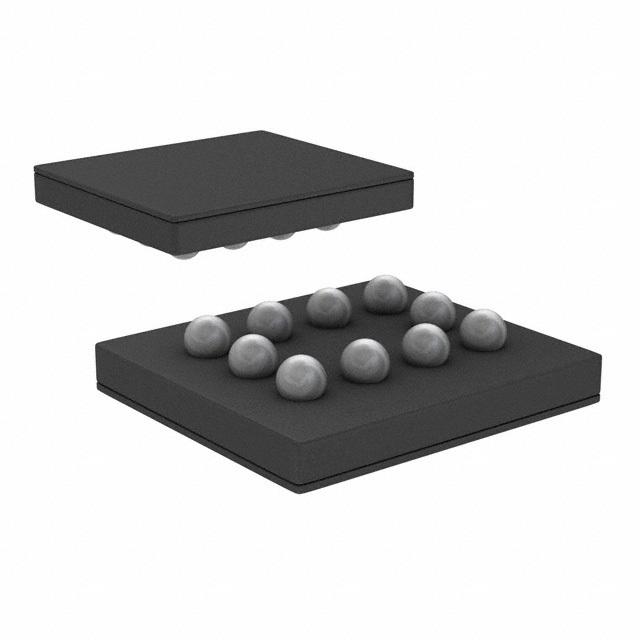

Case / Package 10-DSBGA
Win Source Part Number 1053179-LM2608ATLX-1.8/NOPB
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LM2608ATLX-1.8/NOPB CAD Model

Description

Product Overview: LM2608ATLX-1.8/NOPB

The LM2608ATLX-1.8/NOPB is a high-performance, low-power, step-down DC-DC converter produced by Texas Instruments. This device is designed to meet the stringent power requirements of battery-powered electronics such as mobile phones, PDAs, and other handheld devices. The LM2608ATLX-1.8/NOPB operates with an input voltage range from 2.7V to 5.5V, making it suitable for single cell lithium-ion batteries or 3-cell NiMH/NiCd batteries, and provides a fixed output voltage of 1.8V.

Key Features

  • Output Voltage: Fixed 1.8V, ideal for powering low-voltage digital cores.
  • High Efficiency: Integrated synchronous rectification for improved efficiency and longer battery life.
  • Low Quiescent Current: Ensures minimal power drain when in standby, extending battery life in portable applications.
  • Load Regulation: Excellent load transient response, maintaining stable output voltage during dynamic load changes.
  • Thermal Shutdown: Built-in thermal shutdown protection to prevent overheating during high current operation.
  • Current Limiting: Internal current limit to protect the device and the load from overcurrent conditions.
  • Package: Available in a compact, surface-mount, lead-free package that is RoHS compliant.

Applications

The LM2608ATLX-1.8/NOPB is versatile and can be used in a variety of applications, including:

  • Mobile Phones
  • Personal Digital Assistants (PDAs)
  • Portable Media Players
  • Wireless Handsets and Accessories
  • GPS Devices

Quality and Reliability

The device comes with the assurance of Texas Instruments' quality and reliability. The NOPB designation in the part number indicates that this product is lead-free and RoHS compliant, making it suitable for use in environmentally sensitive applications. Additionally, the LM2608ATLX-1.8/NOPB is designed to meet or exceed the reliability and performance standards expected from a leading semiconductor manufacturer.

For detailed information, including pin configurations, application circuits, and performance graphs, engineers and designers are encouraged to consult the datasheet and supporting technical documentation available from Texas Instruments.
