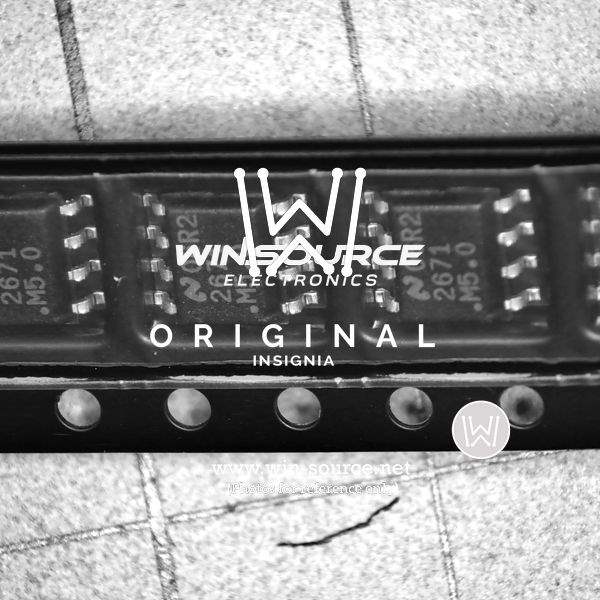

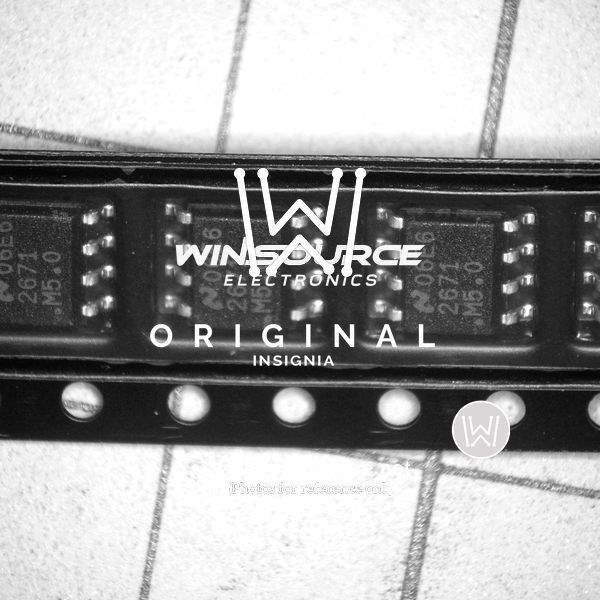

Overview of Texas Instruments LM2671M-5.0

The LM2671M-5.0 from Texas Instruments is a highly efficient, step-down voltage regulator that offers the flexibility of adjustable output voltage and fixed 5V output. This SIMPLE SWITCHER® regulator is designed to provide up to 1A of load current with an output voltage adjustable from 1.2V to 37V. It operates at a switching frequency of 260kHz, allowing for smaller-sized filter components, resulting in a compact power supply design.

Key Features

• Output Voltage: Fixed 5V or adjustable from 1.2V to 37V.
• Output Current: Capable of delivering up to 1A.
• High Efficiency: Possesses a high efficiency of up to 92%, which reduces energy loss as heat and improves overall system performance.
• Switching Frequency: Operates at 260kHz, enabling the use of smaller passive components.
• Protection Features: Includes thermal shutdown and current limit, providing reliable operation under adverse conditions.

Applications

The LM2671M-5.0 is versatile and can be used in a variety of applications. It is particularly well-suited for:

• Efficient power supplies for battery-powered devices
• Step-down regulators for embedded systems
• Positive to negative converters (Buck-Boost)
• Variable output voltage power supplies

Product Specifications

The LM2671M-5.0's combination of features and performance makes it an excellent choice for designers looking for a reliable and efficient voltage regulator for their next project. With Texas Instruments' reputation for quality, this component is sure to be a cornerstone in power management solutions.
