Product Overview: LM2675LD-5.0/NOPB

The LM2675LD-5.0/NOPB is a highly efficient, step-down voltage regulator designed and manufactured by Texas Instruments. This integrated circuit is part of the LM2675 series, which is known for its ease of use and robust performance in a variety of applications. The LM2675LD-5.0/NOPB is specifically engineered to deliver a fixed output voltage of 5.0V, making it an ideal choice for systems that require a stable 5V power supply.

Key Features

• Output Voltage: Fixed 5.0V with a high precision rate, suitable for sensitive electronic components that require a consistent power supply.
• Output Current: Capable of delivering up to 1A of continuous current, which is sufficient for a wide range of applications.
• High Efficiency: Features a Simple Switcher® design, providing an efficiency of up to 92%, which helps in reducing power loss and heat generation.
• Adjustable Switching Frequency: Allows the user to set the switching frequency between 260 kHz and 400 kHz, providing flexibility in component selection and optimization of the power supply design.
• Thermal Shutdown: Built-in thermal shutdown feature ensures protection against overheating, enhancing the longevity and reliability of the device.
• Current Limit Protection: Offers in-built current limit protection to safeguard the device and the load from excessive current conditions.

Applications

The LM2675LD-5.0/NOPB is versatile and can be used in various applications, including:

• Consumer Electronics
• Telecommunications
• Computing Systems
• Industrial Controls
• Portable Devices

Package and Quality

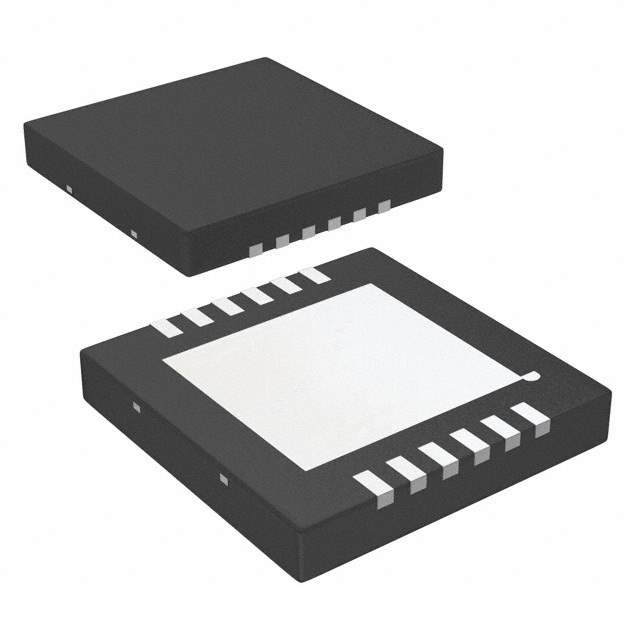

The device is available in a space-saving 16-pin WSON package, which is suitable for compact PCB layouts. The NOPB designation indicates that it is part of Texas Instruments' eco-friendly product range, with 'No Lead' (Pb-free) packaging. This makes the LM2675LD-5.0/NOPB compliant with RoHS directives, which aim to reduce the environmental impact of electronic components.

In summary, the LM2675LD-5.0/NOPB from Texas Instruments is a reliable and efficient solution for applications requiring a regulated 5V supply. Its combination of features, including high efficiency, thermal protection, and current limit protection, make it a robust choice for designers looking to optimize their power management systems.
