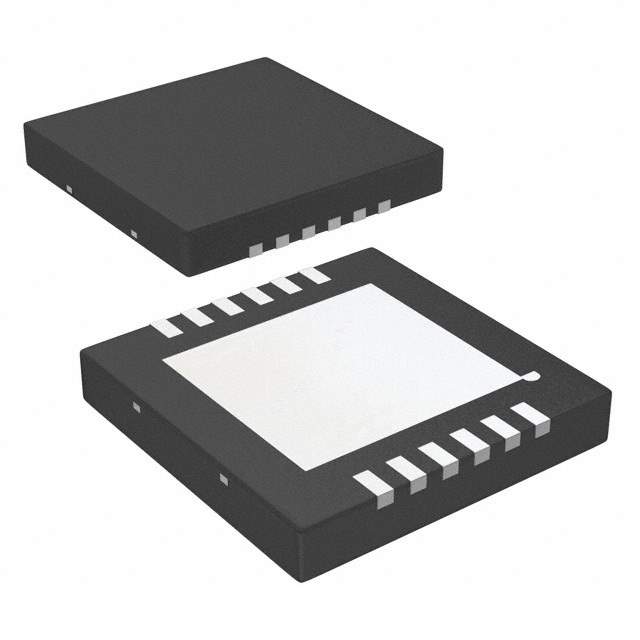

The LM2675LD-ADJ from Texas Instruments is a highly efficient, space-conscious step-down voltage regulator encapsulated in a compact package. This SIMPLE SWITCHER® regulator is designed to minimize external component count, providing a straightforward solution for applications requiring a lower output voltage from a higher input voltage source.

Key Features

• Adjustable Output Voltage: The device offers an adjustable output voltage that can be tailored to specific requirements, making it versatile for various applications.
• High Efficiency: With an efficiency of up to 92%, this regulator ensures minimal power loss during conversion, which is critical for battery-powered and energy-sensitive applications.
• Integrated Features: The LM2675LD-ADJ includes a fixed frequency oscillator, a precision reference, and a high-side switch, which contribute to a reduced component count and a simplified design process.
• Thermal Shutdown and Current Limit: Built-in thermal shutdown and current limit protections safeguard the device and the application from potential damage due to overheating or overcurrent conditions.

Applications

This versatile regulator is suitable for a broad range of applications, including:

• Portable Devices
• Embedded Systems
• Industrial Power Supplies
• Automotive Electronics
• Telecommunications Equipment

Technical Specifications

Parameter Value Input Voltage Range 6.5V to 40V Output Voltage Range 1.21V to 37V (Adjustable) Output Current Up to 500mA Switching Frequency 260kHz Package Type LLP-8

For designers and engineers seeking a reliable and efficient power management solution, the LM2675LD-ADJ offers an optimal balance of performance and ease of use, backed by the quality and support of Texas Instruments.
