Product Overview: Texas Instruments LM2676S-12

The Texas Instruments LM2676S-12 is a highly efficient, step-down voltage regulator belonging to the SIMPLE SWITCHER® family of power management devices. This regulator is designed to provide a fixed output voltage of 12V with an input voltage range of 8V to 40V, making it a versatile solution for a wide array of applications. The LM2676S-12 is capable of delivering up to 3A of continuous output current with outstanding load and line regulation.

Key Features

• Output Voltage: Fixed 12V output to power a variety of devices.
• High Efficiency: Integrated switch allows for up to 92% efficiency, reducing heat dissipation and saving energy.
• Output Current: Capable of delivering 3A of continuous output current.
• Wide Input Voltage Range: Operates with an input voltage range from 8V to 40V, accommodating various power sources.
• Thermal Shutdown: Features thermal shutdown and current limit protection to ensure safe operation under abnormal conditions.
• Frequency Adjustment: Offers an adjustable switching frequency from 260 kHz to 400 kHz or can be synchronized to an external clock.

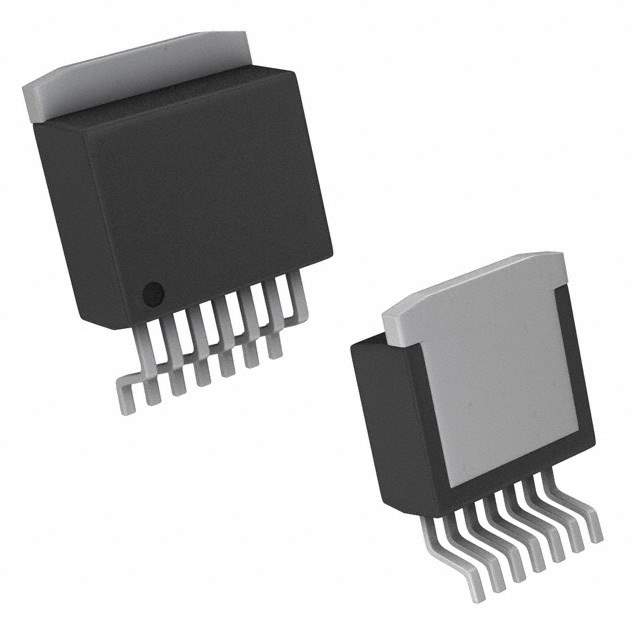

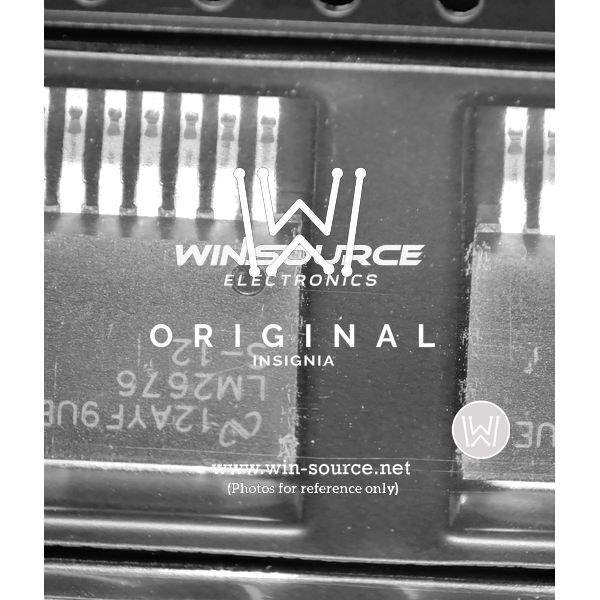

• Package: Available in a thermally enhanced TO-263 package, which aids in heat dissipation during operation.

Applications

The LM2676S-12 is suitable for a broad range of applications, including but not limited to:

• Industrial power systems
• Automotive electronics
• Telecommunications equipment
• Consumer electronics
• PC and server power supplies

Design and Integration

Integrating the LM2676S-12 into a circuit is made easy thanks to its SIMPLE SWITCHER® design, which simplifies the layout and reduces external component count. The regulator supports a simple external circuitry that includes an inductor, diode, input and output capacitors, and resistors to set the switching frequency and soft-start behavior. This straightforward design allows for quick and reliable deployment in a variety of systems.

With its robust feature set and ease of use, the Texas Instruments LM2676S-12 is an excellent choice for designers seeking a reliable and high-performance voltage regulator solution.
