LM2700LD-ADJ/NOPB

Part No LM2700LD-ADJ/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BOOST ADJ 2.55A 14WSON
Datasheet
LM2700LD-ADJ/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Purpose Step-Up
Topology Boost
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 2.2V
Maximum Input Voltage 12V
Nominal Output Voltage (Min/Fixed) 1.26V
Maximum Output Voltage 17.5V
Output Current 2.55A (Switch)
Frequency - Switching 600kHz, 1.25MHz
Synchronous Rectifier No
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)

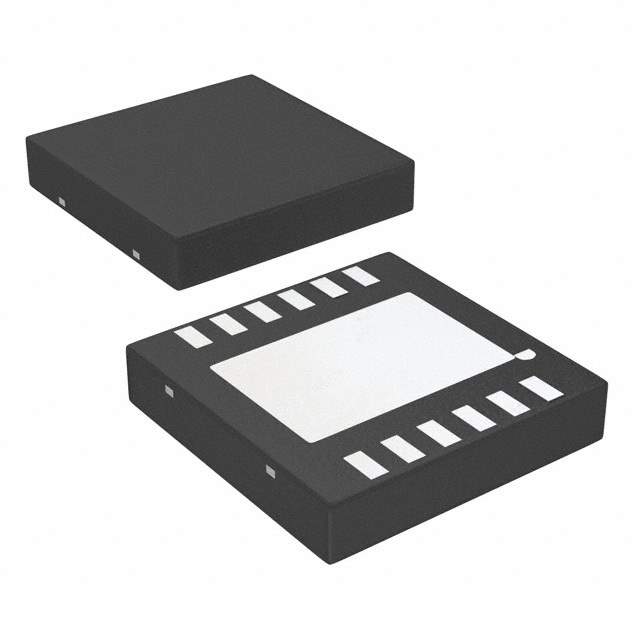

Case / Package 14-WSON (4x4)
Win Source Part Number 117717-LM2700LD-ADJ/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM2700LD-ADJ/NOPB CAD Model

Description

The LM2700LD-ADJ/NOPB is a high-performance, step-up DC/DC converter manufactured by Texas Instruments.

  • Series: SIMPLE SWITCHER®
  • Output Voltage: Adjustable from 1.21V to 14V
  • Load Capacity: Up to 3.6A
  • Switching Frequency: 600 kHz
  • Internal Switch: 3.6A
  • Efficiency: Up to 90%
  • Input Voltage Range: 2.2V to 14V
  • Protection Features: Thermal shutdown, current limit, and undervoltage lockout
  • Package: 10-pin LLP
