The LM2750LDX-ADJ is a high-performance, regulated switch-capacitor voltage converter designed by Texas Instruments. This innovative product is tailored to deliver a versatile solution for power management, particularly in portable devices where space and efficiency are critical considerations.

Key Features

• Adjustable Output Voltage: The LM2750LDX-ADJ offers an adjustable output voltage feature, which allows for a wide range of output voltages to be programmed based on the needs of the application. This flexibility makes it suitable for powering a variety of components that require different voltage levels.
• High Efficiency: With its switch-capacitor architecture, this device achieves high conversion efficiency, which helps in extending battery life for portable applications.
• Small Footprint: The compact design of the LM2750LDX-ADJ is ideal for space-constrained applications. It minimizes the need for large external components, thereby reducing the overall solution size.
• Low Noise Operation: The device is engineered to produce low output voltage ripple and reduced noise, making it suitable for noise-sensitive applications such as RF or audio circuits.

Applications

The LM2750LDX-ADJ is a versatile component that can be used in a variety of applications, including:

• Mobile Phones
• Digital Cameras
• Portable Media Players
• Handheld Devices

Technical Specifications

The LM2750LDX-ADJ operates over a wide input voltage range and provides a stable and regulated output voltage. Below are some of the technical specifications:

• Input Voltage Range: 2.7V to 5.5V
• Adjustable Output Voltage Range: Up to 5.5V
• Switching Frequency: Up to 1.6 MHz

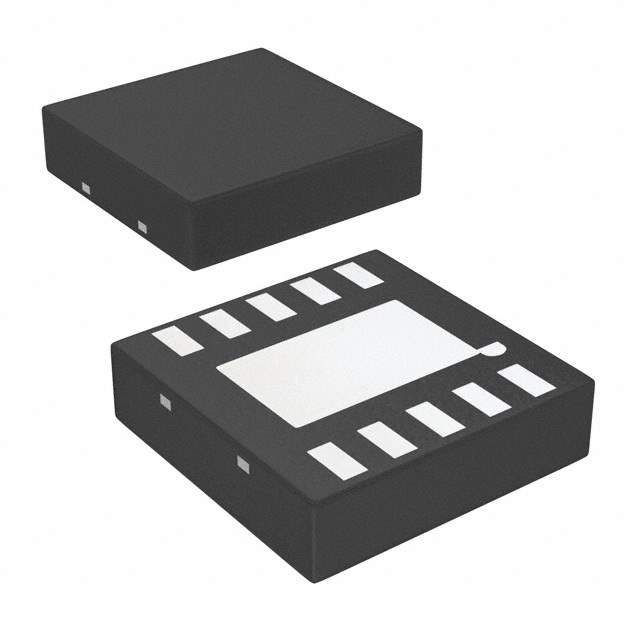

• Package: LLP-14 (Leadless Leadframe Package)

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability. The LM2750LDX-ADJ is manufactured under stringent conditions to ensure high performance and durability for the end-user. It is a testament to TI's ongoing dedication to providing superior products for power management solutions.
