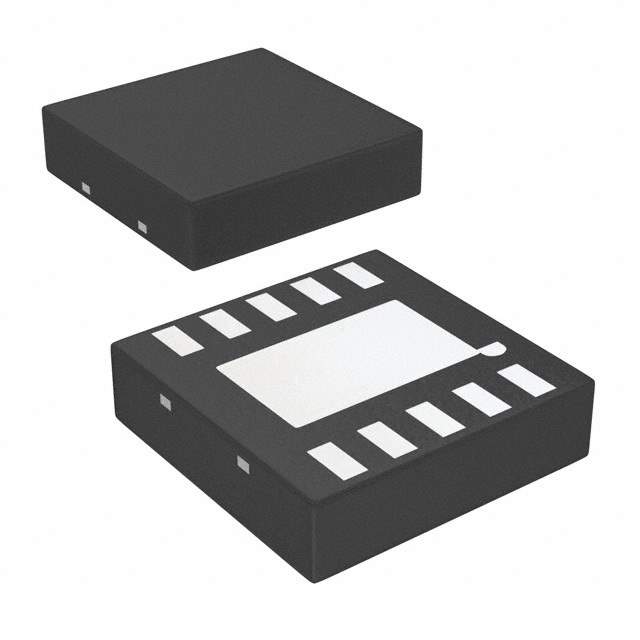

LM2793LDX Real Image
Same model may have multiple batches, images only for reference.

LM2793LDX

Part No LM2793LDX
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 10WSON
Datasheet
LM2793LDX Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 2
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 5.5V
Channel Output Current 16mA
Frequency 500kHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 10-WSON (3x3)
Win Source Part Number 082651-LM2793LDX
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM2793LDX CAD Model

Description

The LM2793LDX is a high-quality, versatile mobile phone display light solution manufactured by Texas Instruments.

  • Application: Drive white LEDs for backlighting color LCD panels.
  • Power Input: Single lithium-ion cell, 3-cell NiMH/NiCd, or 4-cell alkaline input.
  • Regulator: High-efficiency charge pump.
  • Charge Pump Modes: 1x, 1.5x, or 2x.
  • LED Control: Independently control up to six white LEDs.
  • Brightness Adjustment: I2C compatible interface.
  • Feature: Built-in soft-start mechanism.
  • Thermal Management: Excellent capabilities.
  • Package: Compact, lead-free 16-bump micro SMD.
  • Compliance: RoHS compliant.
