The LM2831XSD, manufactured by Texas Instruments, is a high-performance, pulse-width modulated (PWM) step-down DC/DC converter. This compact and efficient power management integrated circuit is designed to deliver a continuous load current of up to 1.5A with excellent line and load regulation. The LM2831XSD operates at a fixed switching frequency of 1.6 MHz, which allows for the use of small surface-mount inductors and capacitors, leading to a reduced footprint and minimal space on the PCB.

Key Features

• High Efficiency: The device offers a high efficiency of up to 95%, which helps in reducing power losses and improving battery life in portable applications.
• Adjustable Output Voltage: It supports an adjustable output voltage range from 1.25V to 6V, catering to a wide array of power requirements for various electronic devices.
• Thermal Shutdown: The built-in thermal shutdown feature ensures the protection of the device under over-temperature conditions.
• Current Overload Protection: Current overload protection is integrated to safeguard the device and the load from excessive current conditions.
• Low Shutdown Current: The LM2831XSD boasts a low shutdown current of less than 1μA, which significantly reduces power consumption when the device is not active.

Applications

The versatility of the LM2831XSD makes it suitable for a variety of applications, including but not limited to:

• Portable devices such as smartphones, tablets, and digital cameras
• Wireless and DSL modems
• Point-of-load conversions from a 12V or 5V rail
• Low voltage, high-density power systems

Package and Availability

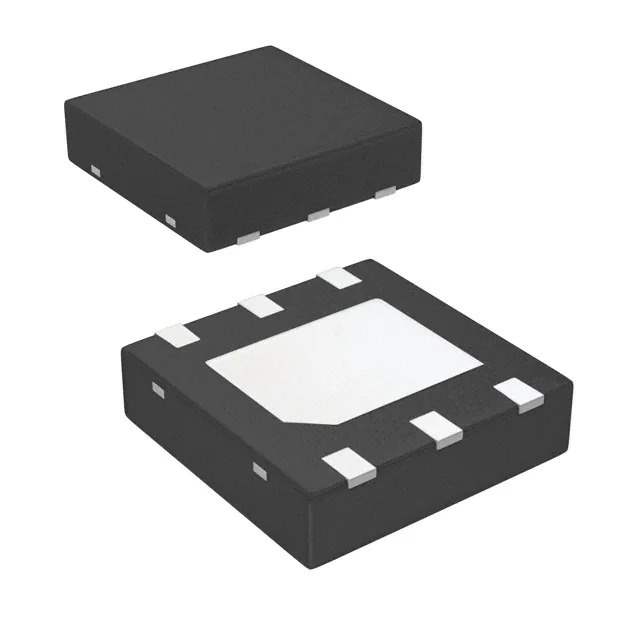

The LM2831XSD comes in a compact, 6-pin LLP package that is RoHS compliant and available for purchase through Texas Instruments and authorized distributors. Its small size and high efficiency make it an ideal choice for space-constrained applications that require a reliable power solution.

For detailed specifications, application notes, and evaluation boards, customers are encouraged to visit the Texas Instruments website to ensure they have the most current and comprehensive information regarding the LM2831XSD.
