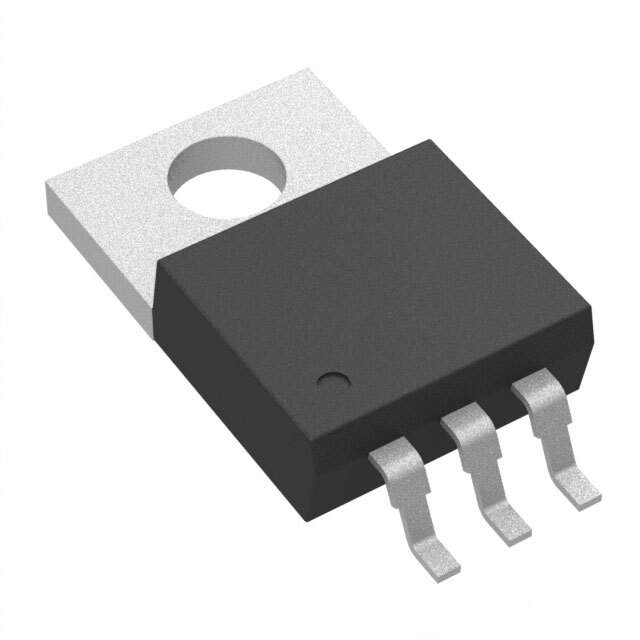

LM2940T-5.0/LF08 Voltage Regulator by Texas Instruments

The LM2940T-5.0/LF08 is a robust, low-dropout voltage regulator designed and manufactured by Texas Instruments, a global leader in semiconductor solutions. This efficient regulator is engineered to maintain a constant 5V output voltage, making it an ideal choice for a wide range of applications, including automotive systems, consumer electronics, and industrial equipment.

Key Features

• Output Voltage: The device provides a fixed output voltage of 5V, which is critical for powering 5V logic in various electronic systems.
• Low Dropout Voltage: With a low dropout voltage, this regulator can maintain output regulation with a minimal difference between the input and output voltages, enhancing system efficiency.
• High Output Current: It is capable of delivering up to 1A of output current, suitable for applications with moderate power demands.
• Thermal Overload Protection: The built-in thermal overload protection safeguards the device against excessive temperature and potential damage.
• Short Circuit Protection: The LM2940T-5.0/LF08 also includes short circuit protection, ensuring reliability and stability even under fault conditions.
• Low Quiescent Current: The regulator features a low quiescent current, which reduces power consumption when the load is light or in standby mode.

Applications

The LM2940T-5.0/LF08 is versatile in its applications, suitable for use in:

• Automotive electronics such as car radios and GPS systems
• Consumer electronics like personal computers, gaming consoles, and peripherals
• Industrial equipment requiring stable 5V power supplies
• Power management solutions for battery-powered devices

Product Specifications

The LM2940T-5.0/LF08 is a testament to Texas Instruments' commitment to providing high-quality, reliable power management solutions. Its robust feature set ensures that it can meet the stringent requirements of various applications while providing a stable power supply for critical components.
