The LM3S9D96-IBZ80-A2 is a high-performance microcontroller unit (MCU) from Texas Instruments, designed for industrial and embedded applications that demand robust operation, connectivity, and real-time control. This MCU is a member of the Stellaris® family, renowned for their integrated communication peripherals and intelligent digital and analog integration.

Key Features

• Core: The heart of the LM3S9D96-IBZ80-A2 is an ARM® Cortex™-M3 processor, which operates at up to 80 MHz, providing efficient computation and control capabilities suitable for a wide range of applications.
• Memory: It comes equipped with 512 KB Flash memory and 96 KB SRAM, ensuring ample space for complex programs and real-time data processing.
• Connectivity: This MCU offers a variety of communication interfaces including Ethernet MAC+PHY, USB OTG/Host/Device, CAN, UARTs, SSI, I2C, and SPI, making it highly versatile for connected solutions.
• Digital and Analog Functions: It features multiple 32-bit timers, PWM outputs, and a 12-bit ADC with 16 analog input channels, facilitating precise control and monitoring of external devices.

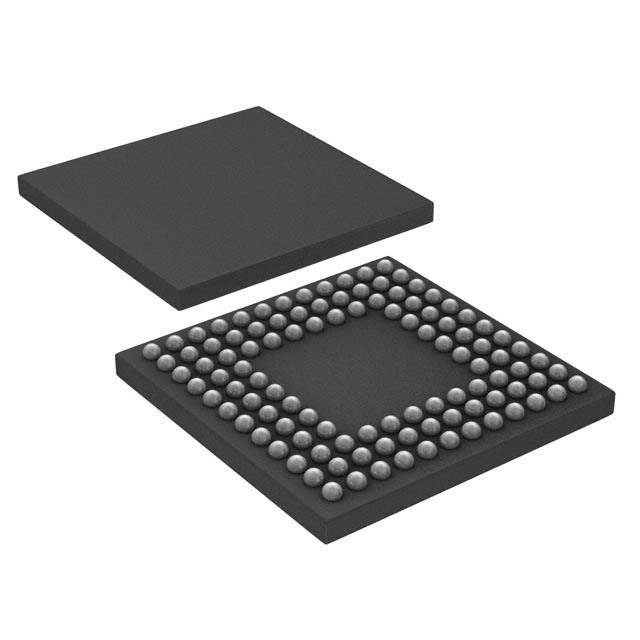

• Package: The LM3S9D96-IBZ80-A2 is available in a 108-pin BGA package, which is optimal for space-constrained applications.

Applications

With its robust feature set, the LM3S9D96-IBZ80-A2 is ideal for a range of industrial applications, including factory automation, networked communication systems, point-of-sale machines, and medical monitoring devices. Its integrated Ethernet and USB capabilities make it particularly well-suited for applications requiring connectivity and high-speed data transfers.

Support and Resources

Texas Instruments provides comprehensive support for the LM3S9D96-IBZ80-A2, including detailed datasheets, technical documentation, and software libraries. Developers can also take advantage of the StellarisWare® software, which includes a full-featured peripheral driver library and example code to streamline the development process.
