The LM4121AIM5-ADJ is a precision voltage reference from Texas Instruments, renowned for its high accuracy and stability. This adjustable voltage reference is part of the LM4121 series, which offers a range of fixed and adjustable voltage references designed to maintain a stable reference voltage over a wide range of operating conditions.

Key Features

• Adjustable Output: The LM4121AIM5-ADJ provides an output voltage that can be set from 1.25V to 10V using external resistors, allowing for high flexibility in various applications.
• High Precision: It boasts an impressive initial accuracy of ±0.5% and ensures minimal deviation over temperature, making it ideal for precision applications.
• Low Temperature Coefficient: The device features a typical temperature coefficient of 50ppm/°C, ensuring a stable output voltage across a wide temperature range.
• Wide Operating Current: It operates over a wide current range from 50µA to 15mA, providing versatile power supply options for different circuit designs.
• Low Dropout Voltage: The low dropout voltage allows for efficient operation, even with a minimal difference between the input and output voltages.

Applications

This voltage reference is well-suited for a variety of applications that require a stable and precise voltage reference. Common applications include:

• Data acquisition systems
• Portable battery-powered equipment
• Precision instrumentation
• Analog-to-digital converters (ADCs)
• Digital-to-analog converters (DACs)

Package and Quality

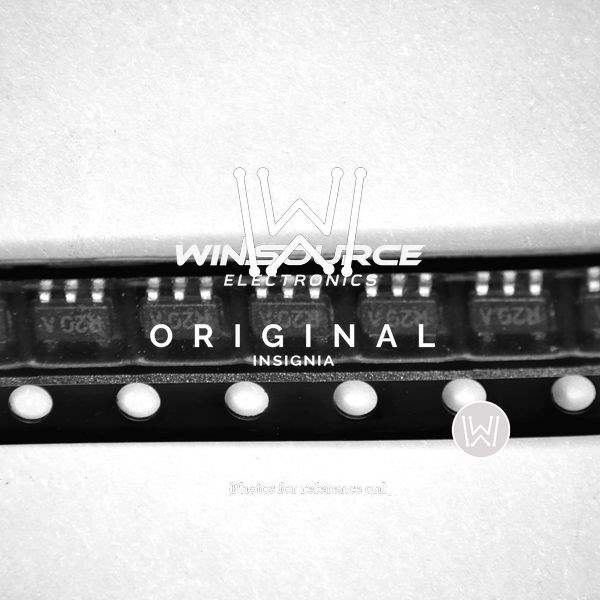

The LM4121AIM5-ADJ comes in a compact SOT-23 package, making it suitable for space-constrained applications. It is also characterized for operation over an extended industrial temperature range of −40°C to 85°C. Texas Instruments is committed to high standards of quality and reliability, and this product is no exception, ensuring dependable performance for critical applications.
