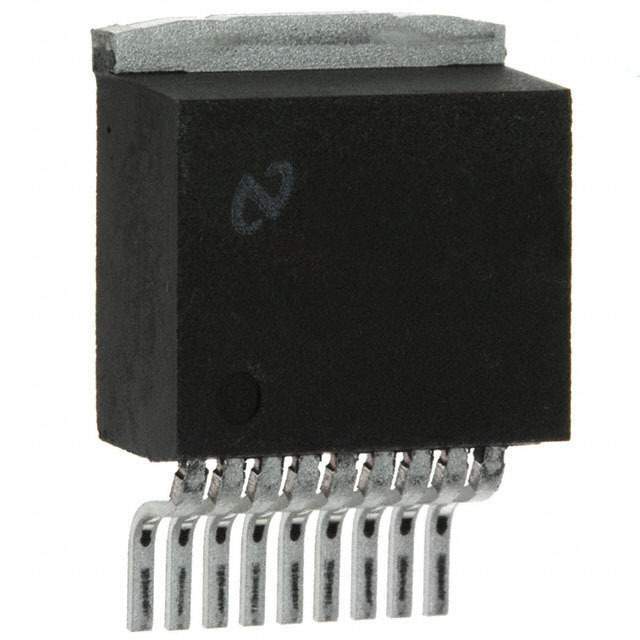

Same model may have multiple batches, images only for reference.
LM4950TSX/NOPB Texas Instruments
Same model may have multiple batches, images only for reference.

LM4950TSX/NOPB

Part No LM4950TSX/NOPB
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Audio
Description IC AMP AUDIO PWR 7.5W AB TO263-9
Datasheet
LM4950TSX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type Class AB
Output Type 1-Channel (Mono) or 2-Channel (Stereo)
Max Output Power x Channels @ Load 7.5W x 1 @ 8 Ohm; 3.1W x 2 @ 4 Ohm
Supply Voltage - Operating 9.6 V to 16 V
Features Depop, Short-Circuit and Thermal Protection, Shutdown
Mounting SMD (SMT)
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package TO-263-9
Dimension TO-263-10 (9 Leads + Tab)
Win Source Part Number 019343-LM4950TSX/NOPB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name LM4950
Introduction Date July 01, 2003
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian LM4950TSX/NOPB CAD Model

Description

The LM4950TSX/NOPB is a high-quality audio amplifier product manufactured by Texas Instruments, a leading global semiconductor company renowned for their innovative and reliable products.

  • Type: Mono bridged audio power amplifier.
  • Power Output: 7.5W of continuous average power into a 4Ω load with less than 1% THD+N from a 12V power supply.
  • Series: 'Boomer' audio power amplifier series.
  • Consumption: Shutdown mode.
  • Voltage Range: Wide supply voltage range of 9V - 15V.
  • Package: Housed in an exposed DAP TO-263 package.
  • Protection: Advanced protection circuitry.
