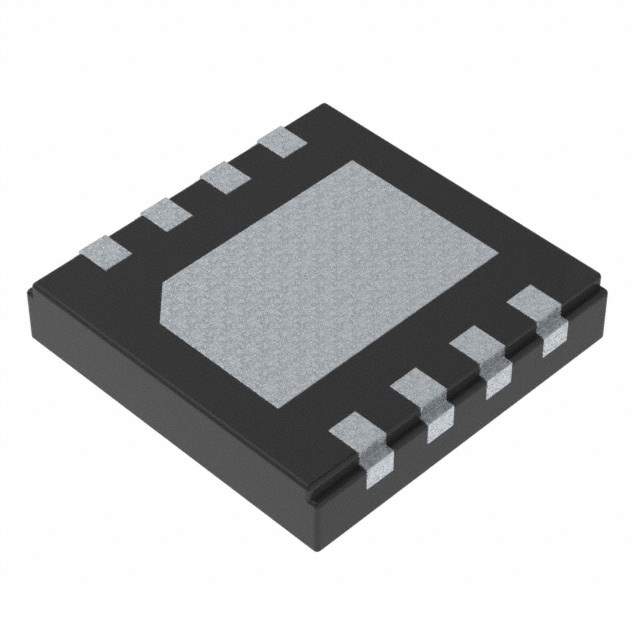

LM5009SDCX/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM5009SDCX/NOPB

Part No LM5009SDCX/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BUCK ADJ 0.15A 8WSON
Datasheet
LM5009SDCX/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Purpose Step-Down
Topology Buck
Output Type Adjustable
Number of Outputs 1
Minimum Input Voltage 9.5V
Maximum Input Voltage 95V
Nominal Output Voltage (Min/Fixed) 2.5V
Maximum Output Voltage 85V
Output Current 150mA
Synchronous Rectifier No
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 8-WSON (4x4)
Win Source Part Number 106449-LM5009SDCX/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM5009SDCX/NOPB CAD Model

Description

The LM5009SDCX/NOPB is a high-performance, advanced switching regulator produced by Texas Instruments, a renowned global semiconductor company.

  • Type: Step-down switching regulator (buck converter)
  • Input Voltage Range: 6V to 95V
  • Output Voltage: Adjustable from 2.5V to 90V
  • Control Scheme: Constant on-time (COT)
  • Package: 8-pin, surface-mount, power pad, downsize package (DSOP)
