The LM5025SD from Texas Instruments is a feature-packed, active clamp voltage mode PWM controller designed for high-efficiency power supply systems. This advanced controller is part of TI's Power Management line of products, catering to a wide range of applications including telecommunications, server power supplies, and industrial platforms.

Key Features

• Versatile Operating Range: The LM5025SD operates over a wide input voltage range, making it suitable for various applications that require a robust power solution.
• Active Clamp Design: The active clamp topology provides zero-voltage switching (ZVS) benefits, which significantly reduces switching losses and improves overall efficiency.
• Advanced Control: It features voltage mode control with line voltage feed-forward, providing fast response to input voltage changes and enhancing the power supply's transient performance.
• Integrated Features: The device integrates a high-voltage startup regulator, a programmable oscillator, a precision reference, and a line under-voltage lockout (UVLO) circuit, streamlining design and reducing external component count.
• Protection Circuits: Comprehensive protection features include cycle-by-cycle current limit, thermal shutdown, and an active clamp gate driver with adjustable dead time to prevent shoot-through.

Applications

The LM5025SD is ideal for a range of applications, particularly where efficiency and reliability are critical. It's commonly used in:

• AC-DC power supplies
• Isolated DC-DC converters
• Telecom infrastructure
• Server and networking power supplies
• Industrial power systems

Technical Specifications

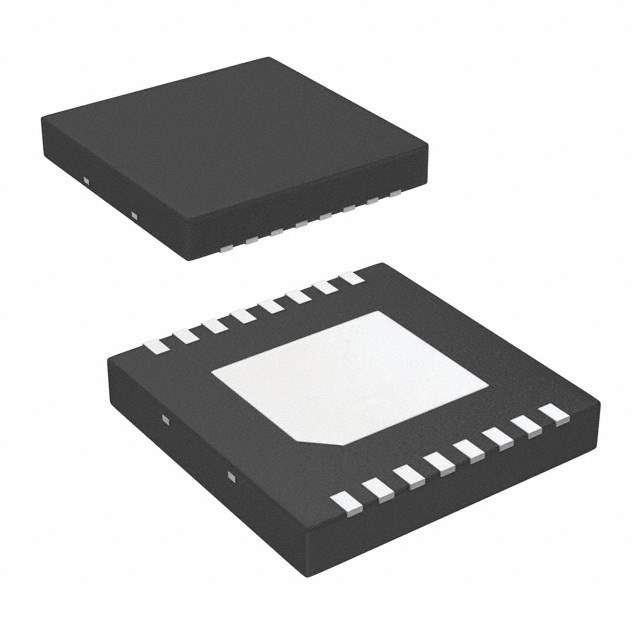

The LM5025SD boasts a maximum duty cycle of 90%, a switching frequency range up to 1 MHz, and an operating temperature range from -40°C to 125°C. It comes in a compact, surface-mount package, making it an excellent choice for space-constrained applications.

With its combination of performance, integrated features, and protection mechanisms, the LM5025SD from Texas Instruments represents a sophisticated solution for advanced power supply designs.
