Product Overview: LM5070SD-50/NOPB by Texas Instruments

The LM5070SD-50/NOPB is a high-performance Power over Ethernet (PoE) powered device interface and PWM controller integrated into one sophisticated chip, designed and manufactured by the renowned semiconductor company, Texas Instruments (TI). This device is specifically tailored for applications that require efficient power sourcing equipment (PSE) communication and reliable DC-DC power conversion in a PoE system.

Key Features

• Integrated PoE Interface: The LM5070SD-50/NOPB integrates a full-featured PoE interface that complies with the IEEE 802.3af standard, allowing it to seamlessly communicate with PSEs and negotiate necessary power requirements.
• Advanced PWM Controller: This product comes with a sophisticated Pulse-Width Modulation (PWM) controller that ensures efficient power management and regulation for the powered device.
• Versatile Power Options: The device supports a wide range of input voltages, accommodating various power supply scenarios and making it a flexible solution for different network-powered applications.
• Protection Features: It includes a suite of protection features such as over-temperature, under-voltage lockout, and over-current protection, which contribute to the robustness and reliability of the end application.

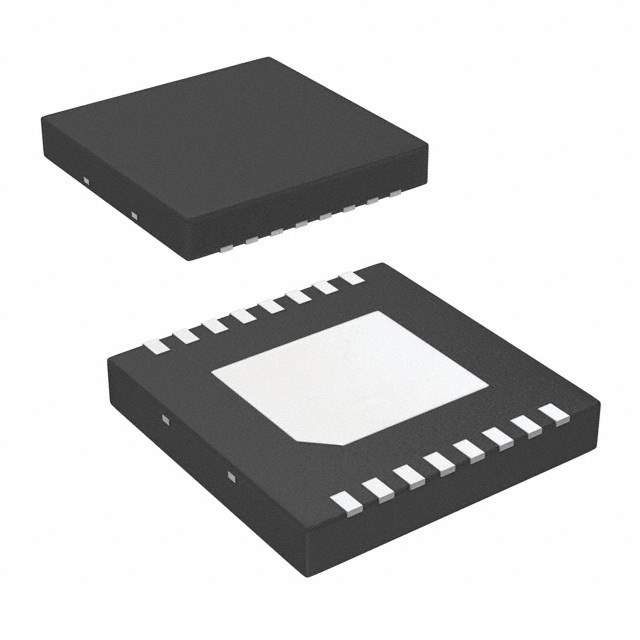

• Small Footprint: The LM5070SD-50/NOPB is available in a compact package, making it suitable for space-constrained applications without compromising performance.

Applications

The LM5070SD-50/NOPB is designed to be used in a variety of applications that require remote power delivery over Ethernet cables. Typical applications include:

• IP Phones
• Wireless Access Points
• Network Cameras
• Industrial Controls

Environmental and Quality Certifications

TI's commitment to quality and environmental sustainability is reflected in the LM5070SD-50/NOPB, which is compliant with RoHS directives, ensuring it meets the requirements for hazardous substance restrictions. Additionally, the device is characterized for operation from -40°C to +85°C, making it suitable for industrial temperature ranges.

In summary, the LM5070SD-50/NOPB from Texas Instruments is a highly integrated, efficient, and reliable solution for PoE applications, providing both power device interface capabilities and DC-DC conversion in a single, compact package.
