LM53600NQDSXTQ1

Part No LM53600NQDSXTQ1
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Regulators
Description IC REG BUCK 3.3V 0.65A 10WSON / Conv DC-DC 3.55V to 36V Synchronous Step Down Single-Out 3.3V 0.65A Automotive 10-Pin WSON EP T/R
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Series Automotive, AEC-Q100
Packaging Reel package
Function Step-Down
Output Configuration Positive
Topology Buck
Output Type Fixed
Number of Outputs 1
Input Voltage MIN 3.8V
Voltage Input MAX 36V
Output Voltage 3.3V
Output Current 650mA
Frequency - Switching 2.1MHz
Synchronous Rectifier Yes
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting SMD

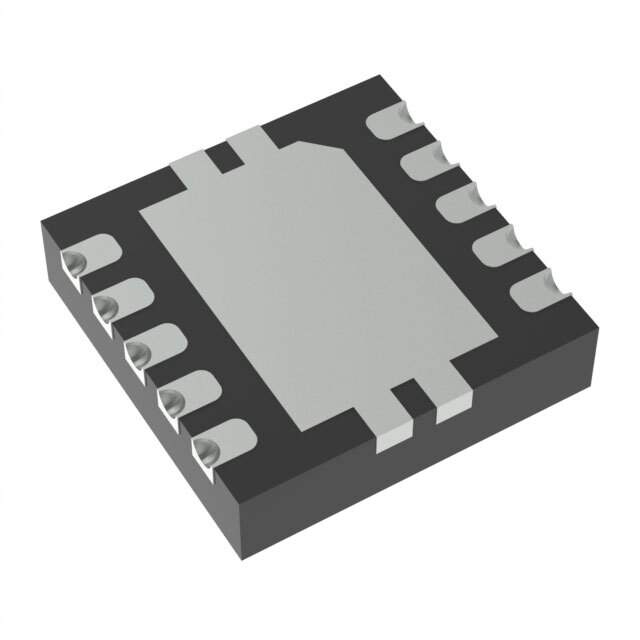

Package 10-WFDFN Exposed Pad
Manufacturer Package 10-WSON (3x3)
Win Source Part Number 779344-LM53600NQDSXTQ1
Popularity Medium
Supply and Demand Status Limited
Family Name LM53600-Q1
Introduction Date December 18, 2015
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LM53600NQDSXTQ1 CAD Model

Description

The LM53600NQDSXTQ1 is a highly efficient, automotive-grade, step-down voltage regulator designed and manufactured by Texas Instruments. This advanced power management integrated circuit (PMIC) is tailored for applications requiring a compact, high-performance solution that can reliably operate in the demanding conditions of automotive environments.

Key Features

  • Input Voltage Range: Capable of handling a wide input voltage range from 3.5V to 36V, making it suitable for a variety of automotive power systems.
  • Output Voltage: Provides an adjustable output voltage that can be set from 0.8V to VIN, with a maximum output current of 650mA, ensuring versatility for different load requirements.
  • High Efficiency: Integrated with a synchronous step-down (buck) regulator topology, which results in high conversion efficiency and reduced heat dissipation.
  • Thermal Performance: Features an excellent thermal performance with a wide operating temperature range, ensuring reliability under various temperature conditions.
  • Robust Protection: Includes features such as overcurrent protection, thermal shutdown, and input undervoltage lockout, safeguarding the device and the system from potential damage.
  • EMI Compliance: Meets CISPR 25 Class 5 radiated emissions standards, minimizing electromagnetic interference in sensitive automotive applications.
  • Package: Available in a small, thermally enhanced WSON package, which is ideal for space-constrained applications.
  • Automotive Qualification: Qualified for automotive applications, complying with the AEC-Q100 standard for reliability.

Applications

The LM53600NQDSXTQ1 is suitable for a diverse range of automotive applications, including but not limited to:

  • Infotainment and telematics systems
  • Advanced driver assistance systems (ADAS)
  • Body control modules
  • Automotive lighting systems
  • GPS and navigation units

With its robust design and comprehensive feature set, the LM53600NQDSXTQ1 from Texas Instruments is an ideal choice for powering the next generation of automotive electronics, ensuring both performance and reliability.
