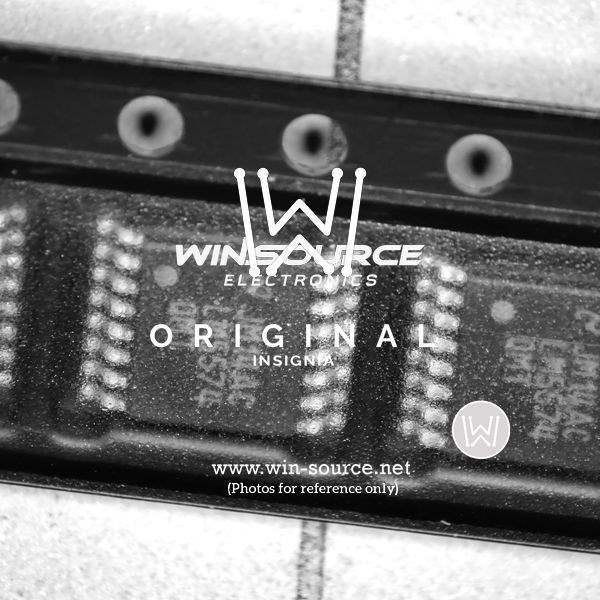

Product Overview: Texas Instruments LM5574QMT

The LM5574QMT from Texas Instruments is a versatile, high-performance step-down switching regulator that is designed to meet the rigorous standards of today's power electronic applications. This regulator is part of TI's LM5574 series, which is well-known for its reliability, efficiency, and advanced features. The LM5574QMT is particularly suitable for automotive, industrial, and telecommunication sectors where efficient power conversion is critical.

Key Features

• Wide Input Voltage Range: The LM5574QMT can handle a wide input voltage range from 6V to 75V, making it ideal for applications that experience large fluctuations in input power.
• High Efficiency: With an efficiency rating of up to 92%, this regulator ensures that power is used effectively, reducing heat generation and improving system reliability.
• Adjustable Output Voltage: The output voltage can be adjusted from 1.225V to 58V, providing flexibility to power a wide array of devices.
• Integrated MOSFET: The inclusion of a high-side N-Channel MOSFET simplifies the design and reduces external component count.
• Thermal Shutdown: Enhanced thermal management is provided through a thermal shutdown feature, which protects the device in high-temperature conditions.
• Frequency Synchronization: The switching frequency can be synchronized to an external clock, which is beneficial for noise-sensitive applications.

Advanced Protection Features

• Current Limit: The LM5574QMT offers cycle-by-cycle current limit protection, which prevents damage from overcurrent conditions.
• Under-Voltage Lockout (UVLO): This feature ensures that the device operates only when the input voltage is within its specified range.
• Pre-Bias Startup: The regulator supports a smooth startup even when the output is pre-biased, avoiding any potential issues during power-up sequences.

Applications

The LM5574QMT is well-suited for a broad range of applications, including but not limited to:

• Automotive systems
• Industrial power supplies
• Telecommunications equipment
• Point of Load (POL) conversions

With its robust design and comprehensive feature set, the Texas Instruments LM5574QMT step-down switching regulator is an excellent choice for designers looking to create efficient, reliable, and compact power management solutions.
