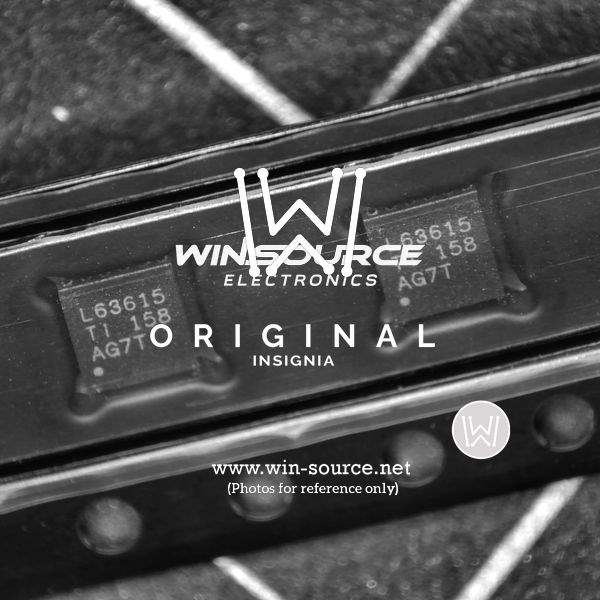

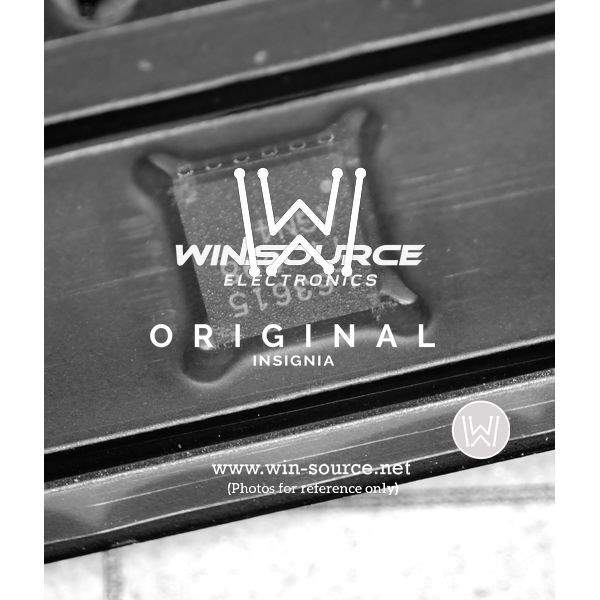

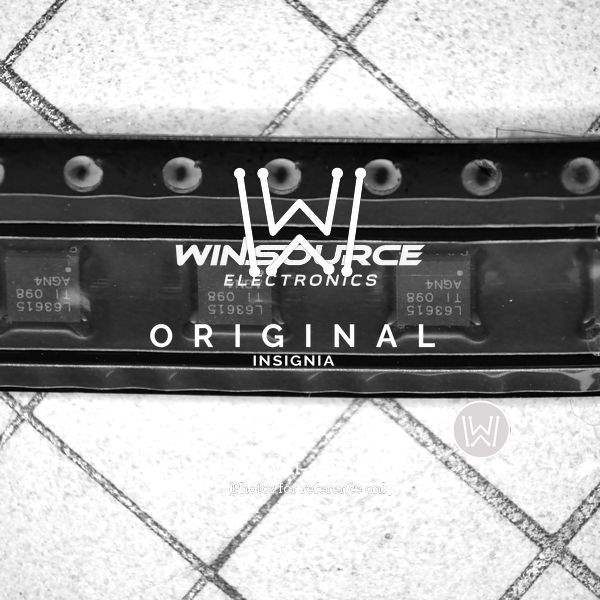

Product Overview: LM63615DQDRRRQ1 from Texas Instruments

The LM63615DQDRRRQ1 is a highly efficient, automotive-grade synchronous step-down voltage converter designed and manufactured by Texas Instruments (TI). This advanced power management integrated circuit (IC) is ideal for applications requiring a high-performance, low-voltage power supply from a higher voltage input.

With an input voltage range of 3.5V to 36V, the LM63615DQDRRRQ1 provides exceptional flexibility for powering automotive systems from a variety of sources, including standard 12V and 24V batteries. This makes it a perfect choice for infotainment systems, advanced driver assistance systems (ADAS), and other automotive applications that demand reliable and efficient power conversion.

The device delivers up to 1.5A of continuous output current with excellent load and line regulation. The high-efficiency operation is maintained over a wide load range, thanks to its ability to seamlessly transition between pulse-width modulation (PWM) and pulse-frequency modulation (PFM) modes. This ensures optimal power consumption in both heavy and light-load scenarios, contributing to the overall energy efficiency of the automotive system.

The LM63615DQDRRRQ1 boasts a robust feature set designed to ensure the safety and reliability of automotive systems. Features such as overcurrent protection, thermal shutdown, and an adjustable soft-start function help manage inrush current and protect the device and downstream components from damage. Additionally, the device is AEC-Q100 qualified, which is a critical standard for automotive-grade components, ensuring that it meets the stringent requirements of the automotive industry.

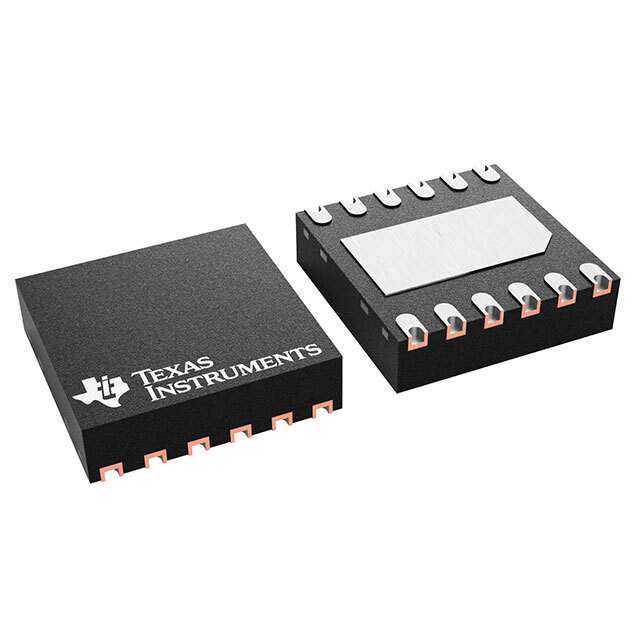

The IC is available in a compact 3.5mm x 3.5mm VQFN-HR package, which is highly suitable for space-constrained applications. With its advanced thermal management, the LM63615DQDRRRQ1 operates reliably over a wide temperature range, making it an excellent choice for the harsh environments commonly encountered in automotive applications.

In summary, the LM63615DQDRRRQ1 from Texas Instruments is a versatile, high-performance step-down converter that provides a durable and efficient power solution for a wide array of automotive electronics, ensuring consistent performance and protection for critical vehicle systems.
