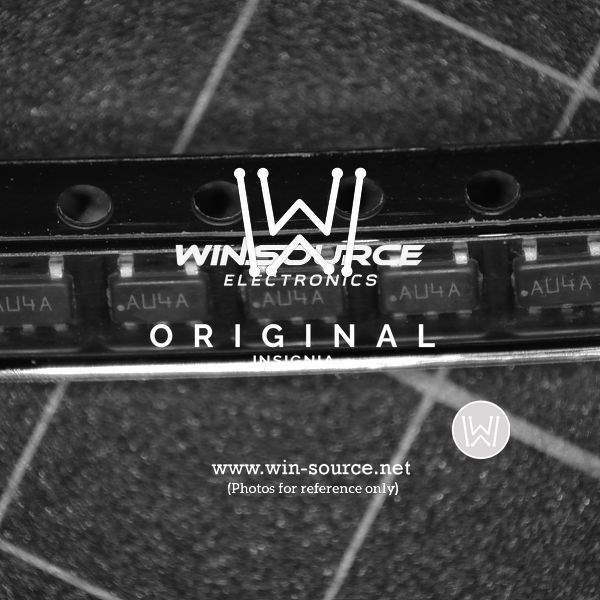

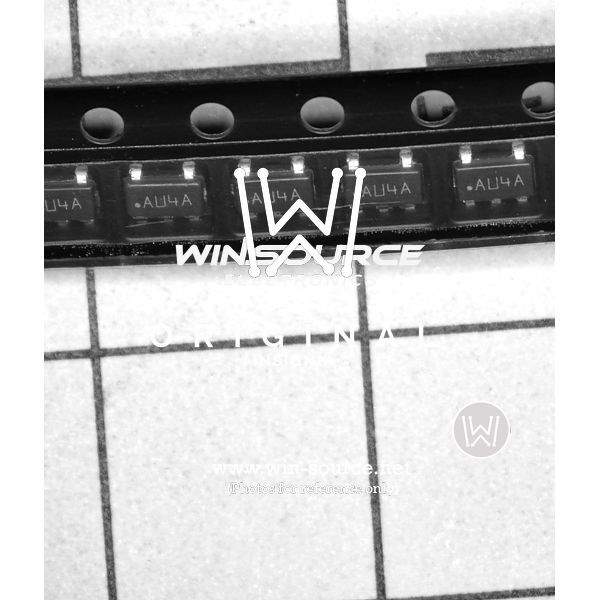

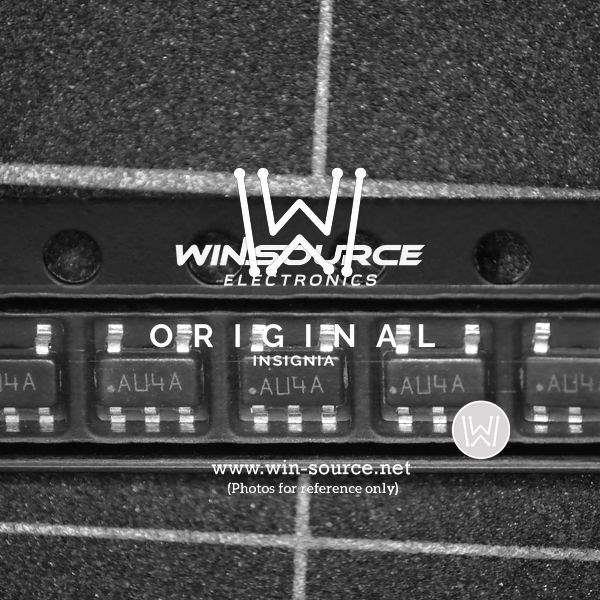

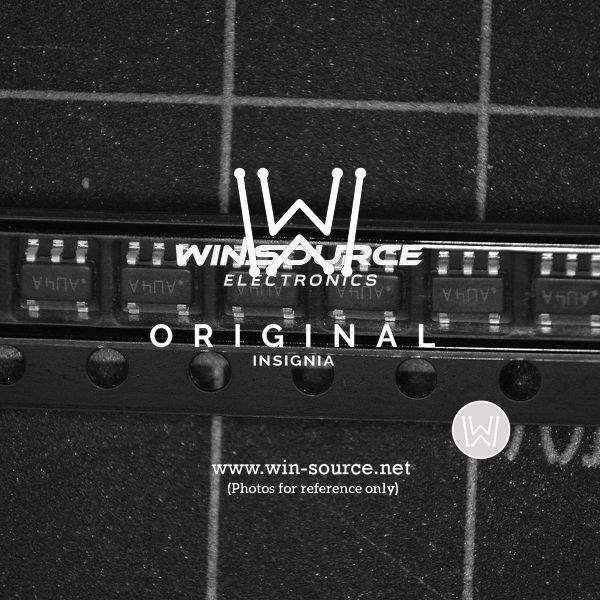

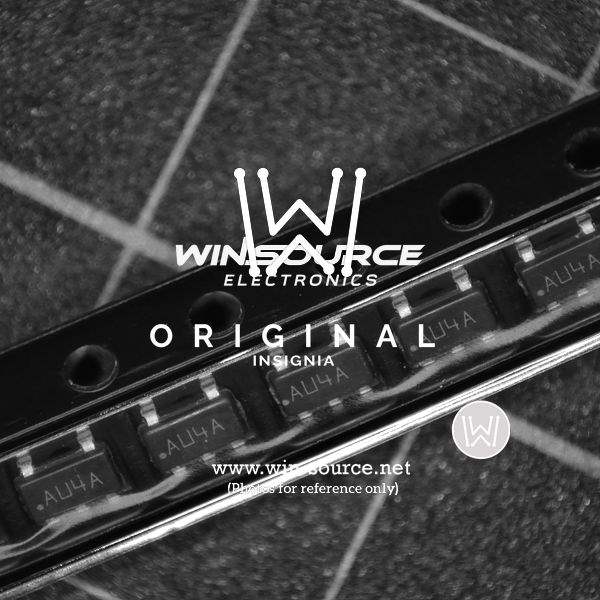

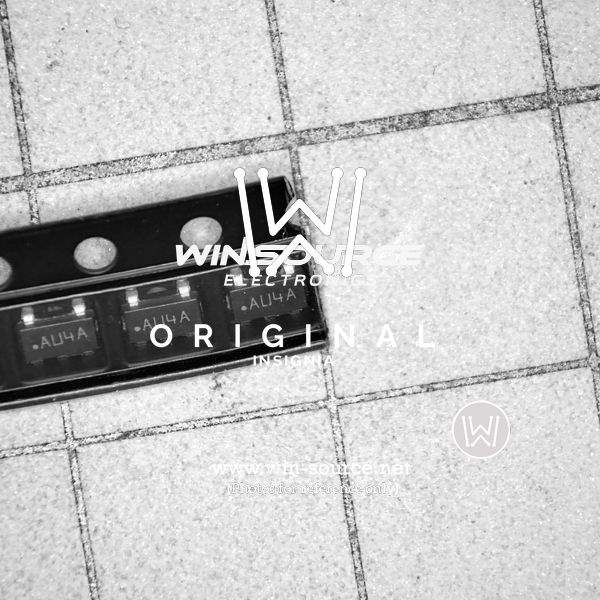

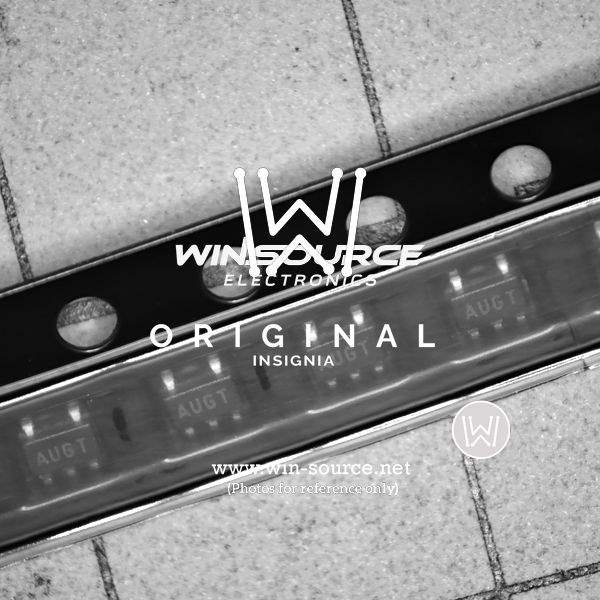

LM7321MFX

Part No LM7321MFX
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP GP 20MHZ RRO SOT23-5
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Amplifier Type General Purpose
Number of Circuits 1
Output Type Rail-to-Rail
Slew Rate 18 V/μs
Gain Bandwidth Product (GBP) 20MHz
Current - Input Bias 1.1μA
Voltage - Input Offset 700μV
Operating Supply Current 1.1mA
Channel Output Current 100mA
Supply Voltage - Operating 2.5 V to 32 V, ±1.25 V to 16 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package SOT-23-5
Win Source Part Number 85720-LM7321MFX
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM7321MFX CAD Model

Description

The LM7321MFX is a high-performance, versatile operational amplifier from Texas Instruments, a renowned global semiconductor company. This product is designed to cater to a wide array of applications, including those that require high levels of precision, speed, and power efficiency.

  • Low Input Voltage Noise Density: 7.5 nV/√Hz
  • High Slew Rate: 10 V/μs
  • Supply Voltage Range: 2.7V to 28V
  • High Output Current: Up to 105mA
  • Low Input Offset Voltage: 0.7mV
  • Gain Bandwidth: 20 MHz
  • Package: Compact, surface-mount package
  • Temperature Range: -40°C to 125°C
  • Compliance: RoHS compliant

The LM7321MFX is an ideal choice for a variety of applications due to its wide supply voltage range, high output current, and low input voltage noise density.
