The LM741H from Texas Instruments is a high-performance operational amplifier on a single monolithic chip. The LM741H series is a direct, plug-in replacement for the 709C, LM201, MC1439, and 748 in most applications. The amplifiers offer many features which make their application nearly foolproof: overload protection on the input and output, no latch-up when the common-mode range is exceeded, as well as freedom from oscillations.

Key Features

• Offset-voltage null capability
• High Input Impedance: Ensures minimal loading on the input signal
• Low Noise: Suitable for high-fidelity and audio applications
• High Gain: Provides amplification for a wide range of input signal levels
• Short-Circuit Protection: Ensures robust performance and long-term reliability

Applications

The LM741H is versatile and can be used in a myriad of applications such as:

• Comparators
• DC amplifiers
• Integrators or differentiators
• Summing amplifiers
• Multivibrators

Specifications

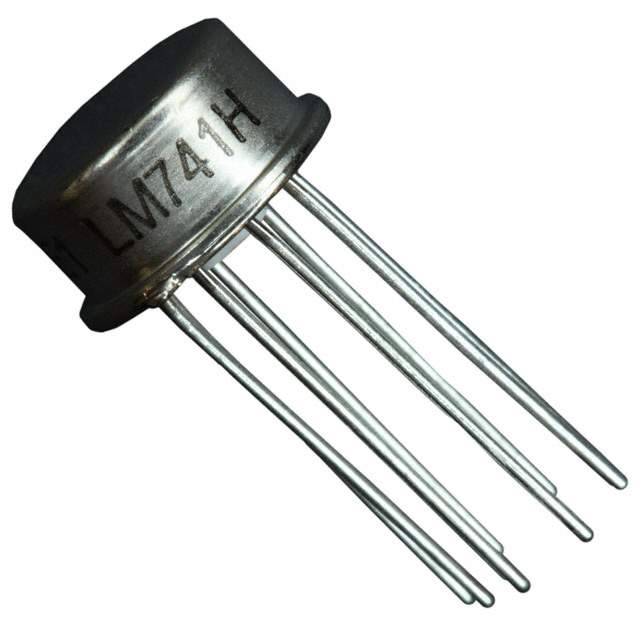

The LM741H is available in a metal can package and is characterized for operation from 0°C to 70°C. This operational amplifier is a reliable and economical solution for system design and amplification needs.

Learn more about the LM741H Operational Amplifier on the Texas Instruments website.
