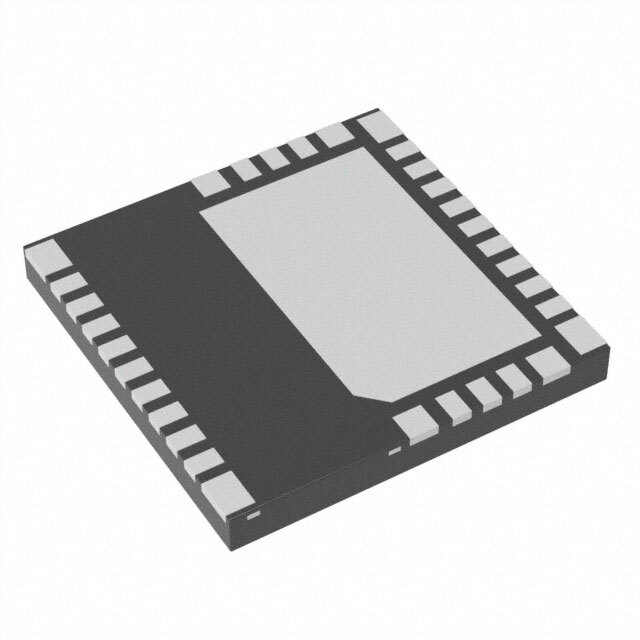

The Texas Instruments LMG3410R050RWHR is a high-performance, gallium nitride (GaN) power module designed to deliver exceptional efficiency and power density in a compact form factor. This state-of-the-art product is part of TI's renowned GaN portfolio, which is revolutionizing power conversion in a wide array of applications, ranging from data centers to renewable energy systems.

At the heart of the LMG3410R050RWHR is a 600-V, 50-mΩ GaN FET with an integrated driver and protection features. This integration not only simplifies the design process but also enhances reliability by reducing the number of components required in the power conversion circuit. The module's optimized layout minimizes inductance and optimizes switching performance, allowing for fast and efficient power conversion.

Key Features:

• Integrated GaN FET: The device includes a 600-V, 50-mΩ GaN FET, providing high-efficiency power conversion.
• Integrated Driver: The inclusion of an integrated driver simplifies the design and enhances performance.
• Advanced Protection: Over-temperature, over-current, and under-voltage lockout protections ensure safe operation under various conditions.
• High Switching Frequency: The device supports high-frequency operation, reducing the size of passive components and enabling compact power supply designs.
• Low Inductance: The module's design minimizes parasitic inductances, enhancing switching performance and reducing EMI.

Applications:

• AC/DC and DC/AC power supplies
• Motor drives
• Solar inverters
• Class-D audio amplifiers
• Wireless power transfer systems

With its robust feature set and compact design, the Texas Instruments LMG3410R050RWHR is an excellent choice for engineers looking to leverage the benefits of GaN technology for their next-generation power conversion solutions. Whether for industrial, automotive, or consumer electronics, this GaN power module is engineered to provide high efficiency, reduced system size, and increased power density.
