Overview of Texas Instruments LMG3411R150RWHT

The LMG3411R150RWHT is a state-of-the-art gallium nitride (GaN) power module designed by Texas Instruments to deliver high efficiency and high power density for a wide range of power conversion applications. This innovative product is part of TI's GaN portfolio, which aims to provide significant improvements over traditional silicon-based solutions.

Key Features

• High-Efficiency GaN FETs: The LMG3411R150RWHT features GaN FETs that offer reduced switching and conduction losses. This leads to higher efficiency in power conversion applications.
• Integrated Driver: The module includes an optimized gate driver designed to match the GaN FETs, minimizing layout concerns and simplifying design.
• Advanced Protection: Built-in over-temperature and over-current protection ensure the reliability and longevity of the module.
• High-Switching Frequency: The device supports high-frequency switching, which enables smaller passive components and reduces overall system size and weight.

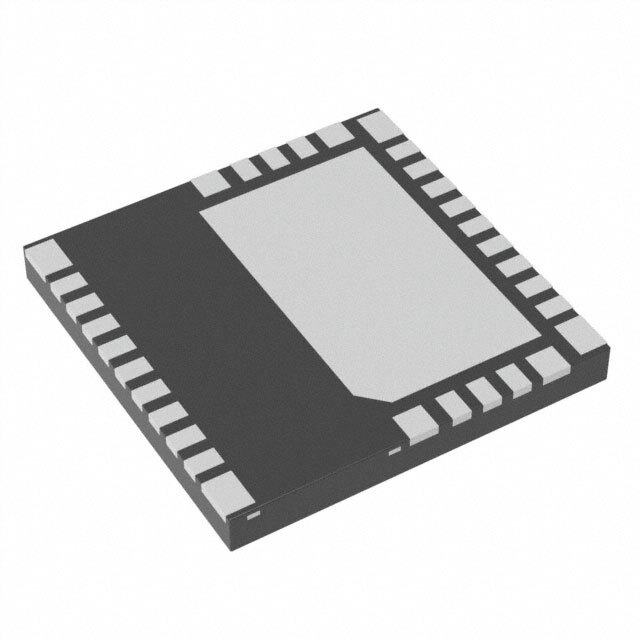

• Low Inductance Package: The LMG3411R150RWHT comes in a low-inductance package that minimizes parasitic inductances, further improving performance and ease of use.

Applications

The versatility of the LMG3411R150RWHT allows it to be used in a variety of applications, including:

• Telecom and server power supplies
• Industrial power supplies
• Motor drives
• Uninterruptible power supplies (UPS)
• Class-D audio amplifiers

Technical Specifications

Parameter Value Drain-Source Voltage (V<sub>DS) 600V Continuous Drain Current (I<sub>D) 15A Power Stage Efficiency Up to 99% Switching Frequency Up to 1MHz

In summary, the LMG3411R150RWHT from Texas Instruments is a powerful and efficient GaN power module that offers numerous advantages for modern power conversion systems. Its integration of driver and protection features, along with its high-performance GaN FETs, make it an excellent choice for designers looking to improve efficiency and reduce size in their power supply designs.
