The LMH0384SQ/NOPB is a high-performance, adaptive cable equalizer designed and manufactured by Texas Instruments. It is specifically engineered to equalize data transmitted over coaxial cable, targeting the professional video industry where high-definition signal integrity is paramount. The device supports a wide spectrum of data rates and is compatible with multiple video standards, including SDI, HD-SDI, 3G-SDI, and DVB-ASI.

Key Features

• Adaptive Cable Equalization: The LMH0384SQ/NOPB features advanced adaptive equalization capabilities, providing support for up to 150 meters of cable at 2.97 Gbps, 200 meters at 1.485 Gbps, and up to 400 meters at 270 Mbps. This ensures clear signal transmission over long distances, which is crucial for professional video applications.
• Wide Data Rate Range: This product supports a broad range of data rates from 125 Mbps to 2.97 Gbps, making it versatile for various digital video formats.
• Integrated Cable Driver: The device includes an integrated cable driver with programmable de-emphasis, which helps to maintain signal integrity over extended cable lengths.
• Power Efficiency: The LMH0384SQ/NOPB is designed for power efficiency, operating on a single 3.3V supply, which is ideal for reducing power consumption in high-density broadcast systems.
• Robust Signal Locking: It features an automatic lock mode that ensures robust signal locking, thereby enhancing performance and reliability.

Applications

The LMH0384SQ/NOPB is suited for a range of applications within the video broadcast industry:

• Digital Video Routers and Switchers
• Video Distribution Amplifiers
• Video Editing and Production Equipment
• Studio-to-Transmitter Links
• Video Cameras and Digital Video Recorders

Quality and Reliability

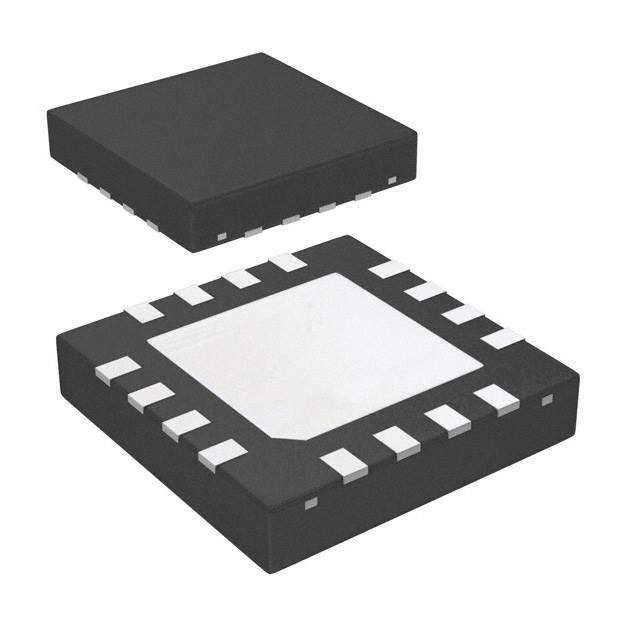

Texas Instruments is known for its commitment to quality and reliability, and the LMH0384SQ/NOPB is no exception. It comes in a compact 16-pin WQFN package and is characterized for operation from -40°C to 85°C, ensuring stable performance in a variety of environments. The NOPB designator indicates that the product is lead-free and RoHS compliant, aligning with environmental standards and regulations.
