Product Overview: LMH1983SQ/NOPB

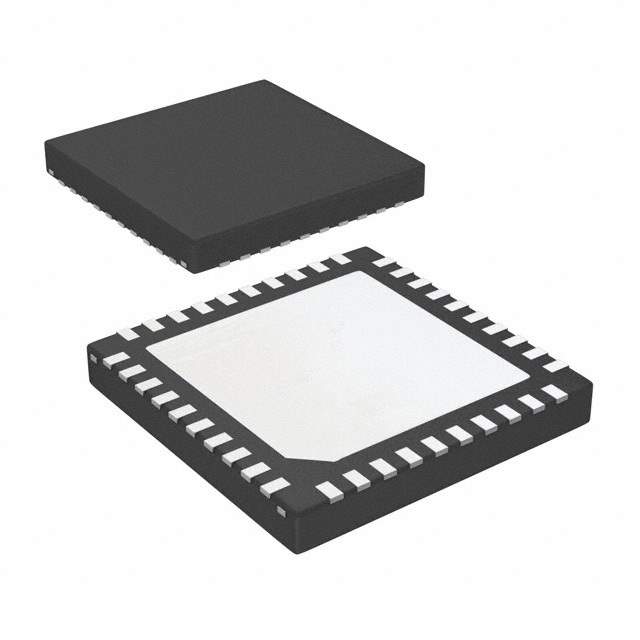

The LMH1983SQ/NOPB is a highly integrated, low-power auto-detecting SMPTE timecode reader/generator from Texas Instruments. It is designed to provide a complete solution for embedded timecode management within broadcast, professional video, and audio systems. This advanced IC comes in a compact 48-WQFN package, making it suitable for space-constrained applications.

Key Features

• Auto-Detection: The LMH1983SQ/NOPB is capable of automatically detecting and decoding SMPTE, EBU, and ARIB timecodes, ensuring compatibility with a wide range of international standards.
• Multi-Format Support: It supports various video formats including NTSC, PAL, and HD, making it a versatile choice for different regional standards and industry requirements.
• Low Jitter Clock Generation: The device provides a low jitter clock output that is essential for maintaining synchronization and timing accuracy in digital audio and video equipment.
• Versatile Connectivity: It includes a serial interface for communication with microprocessors or FPGAs, as well as parallel interfaces for direct connection to video/audio equipment.
• Robust Timekeeping: The LMH1983SQ/NOPB maintains accurate timecode generation even in the event of a loss of video reference, ensuring continuous operation.

Applications

The LMH1983SQ/NOPB is ideal for a variety of applications in the broadcasting and professional AV sector, including but not limited to:

• Video servers
• Video editing and production equipment
• Broadcast routers and switchers
• Digital audio workstations
• Synchronization and timecode distribution systems

Environmental and Quality Certifications

As part of Texas Instruments' commitment to environmental responsibility and product quality, the LMH1983SQ/NOPB is RoHS compliant and has been manufactured to the highest standards, ensuring reliability and performance in demanding conditions.
