LMZ10500SEE/NOPB

Part No LMZ10500SEE/NOPB
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.6-3.6V
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1196650-LMZ10500SEE/NOPB
Manufacturer Texas Instruments
Category Power Supplies - Board Mount DC DC Converters
Series SIMPLE SWITCHER®
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Obsolete
Type Non-Isolated PoL Module
Applications ITE (Commercial)
Mounting Type Surface Mount
Package / Case 8-SMD Module
Size / Dimension 0.12" L x 0.10" W x 0.06" H (3.0mm x 2.6mm x 1.5mm)
Ultra Librarian 3D Model Ultra Librarian LMZ10500SEE/NOPB CAD Model

Description

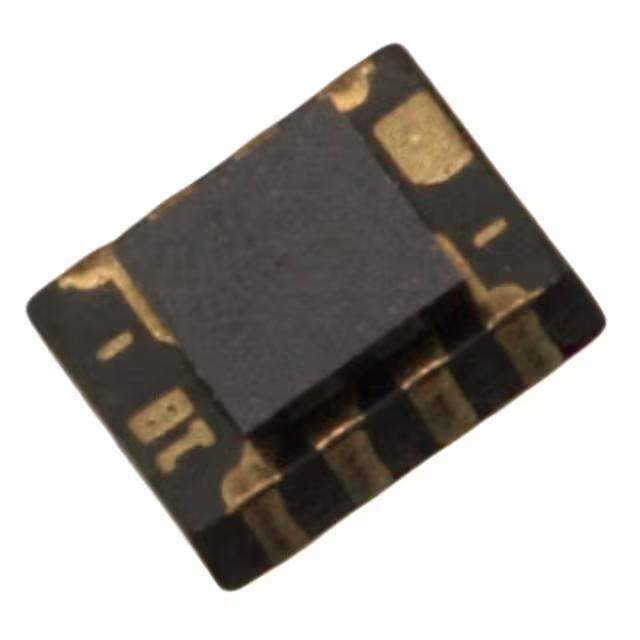

Product Overview: LMZ10500SEE/NOPB

The LMZ10500SEE/NOPB is a nano module from Texas Instruments that offers an efficient and compact power management solution. This power module is designed for space-constrained applications and is capable of delivering up to 650mA of output current. With an input voltage range of 2.7V to 5.5V, it is versatile enough to be used in a variety of systems, including portable and battery-powered devices.

Key Features

  • High Efficiency: The LMZ10500SEE/NOPB boasts an efficiency rate of up to 90%, ensuring minimal energy loss during power conversion. This makes it an ideal choice for energy-sensitive applications.
  • Simple Integration: The power module comes in a compact, surface-mountable package, which simplifies the integration process. Its small footprint allows for use in densely-packed PCBs.
  • Adjustable Output: The output voltage of this module can be adjusted from 0.8V to 3.6V, providing flexibility to power a wide range of components.
  • Power Good Output: It features a 'Power Good' output indicator, which provides a signal when the output voltage is within nominal operation range, enhancing system reliability.
  • Thermal Protection: The device includes over-temperature protection, safeguarding the module and the system from damage due to excessive heat.

Applications

The LMZ10500SEE/NOPB is suitable for a broad spectrum of applications. It is particularly well-suited for powering low-voltage digital cores in systems such as:

  • Portable Electronics
  • Wearable Devices
  • Medical Equipment
  • Wireless Networking Devices
  • Point-of-Load Conversions

Quality and Reliability

As with all Texas Instruments products, the LMZ10500SEE/NOPB is manufactured to high standards, ensuring reliability and performance consistency. The module is also lead-free and RoHS compliant, reflecting TI's commitment to environmental sustainability.

In summary, the LMZ10500SEE/NOPB nano module from Texas Instruments is a high-efficiency, versatile, and reliable solution for power management in compact electronic systems. Its adjustable output and integrated features like thermal protection and 'Power Good' output make it a smart choice for designers looking to optimize their power architecture with minimal effort.
