The LMZ10501SHE is a power management integrated circuit developed by Texas Instruments, designed to simplify the process of supplying power to a wide range of electronics. This nano module is an ideal solution for space-constrained applications, offering a highly efficient, compact, and easy-to-use power supply solution.

Key Features

• Output Voltage: The LMZ10501SHE provides an adjustable output voltage range from 0.8V to 3.6V, allowing for versatile use across various electronic devices and applications.
• Input Voltage Range: With an input voltage range of 2.7V to 5.5V, this nano module can accommodate a variety of power sources, making it suitable for battery-powered and fixed-rail systems.
• High Efficiency: This module boasts a high efficiency of up to 90%, ensuring minimal energy loss and heat generation, which is critical for maintaining the longevity and reliability of electronic components.
• Current Capability: It can deliver up to 1A of continuous output current, providing sufficient power for a wide range of low-power applications.

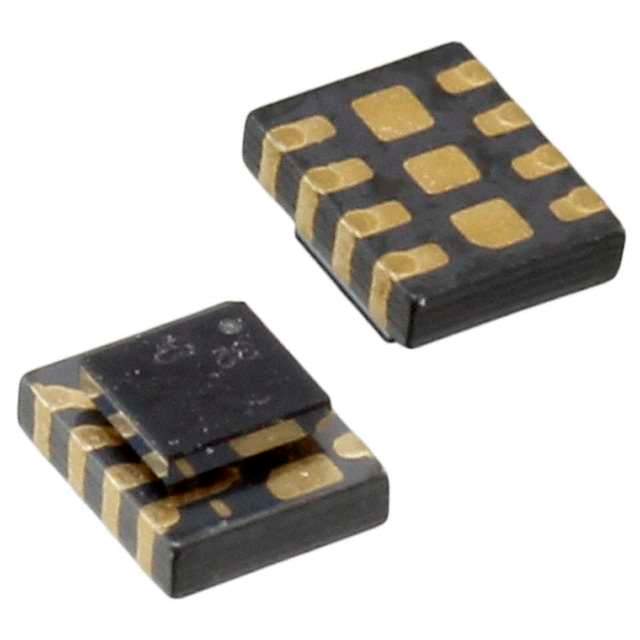

• Compact Size: The LMZ10501SHE comes in a small-footprint, 9-bump, leadless Nano Module package that measures just 3mm x 2.5mm x 1.2mm, making it an excellent choice for portable and space-restricted designs.
• Integrated Inductor: The inclusion of an integrated inductor simplifies the design process by reducing the number of external components required, resulting in a cleaner and more reliable power supply design.
• Protection Features: The module is equipped with over-temperature and over-current protection, ensuring safe operation under abnormal conditions.
• Easy to Use: The LMZ10501SHE is designed for ease of use with minimal external components, which can significantly reduce design time and complexity.

Applications

The LMZ10501SHE is suitable for a broad range of applications, including but not limited to portable electronics, wireless modems, point-of-load conversions, and embedded systems. Its versatility and ease of integration make it a go-to power solution for engineers and designers looking to streamline their power supply designs while maintaining performance and reliability.
