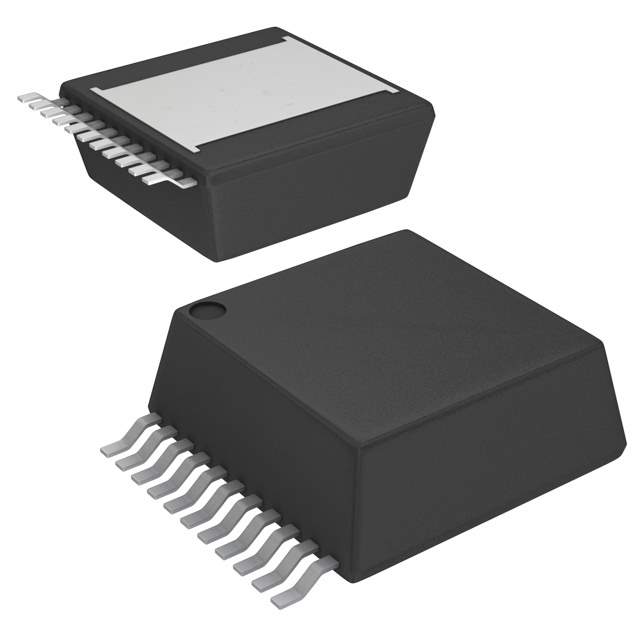

LMZ13610TZ/NOPB from Texas Instruments is a high-performance, easy-to-use power module that combines a 10A DC/DC converter with a shielded inductor and passives into a low-profile, QFN package. This module provides a compact, efficient, and reliable solution that simplifies the design process and reduces the need for external components, making it ideal for space-constrained applications.

The LMZ13610TZ/NOPB operates from an input voltage range of 6V to 36V, suitable for a wide array of applications, including industrial, communications, automotive, and healthcare. It offers an adjustable output voltage from 0.8V to 6V, allowing for versatile use in different systems. The module features a switching frequency that can be programmed from 200kHz to 1MHz, enabling optimization between efficiency and external component size.

Key Features:

• High Power Density: Delivers up to 10A of output current despite its compact size.
• Integrated Shielded Inductor: Minimizes electromagnetic interference (EMI), improving system performance and reliability.
• Protection Features: Includes cycle-by-cycle current limit, thermal shutdown, input under-voltage lockout, and output over-voltage protection.
• Operating Temperature Range: -40°C to +125°C.
• Pin-to-Pin Compatible Family: Allows for easy design upgrades.
• Additional Control Features: Features an on/off pin, power-good flag, and synchronization pin for flexible and robust system design.

In conclusion, the LMZ13610TZ/NOPB from Texas Instruments is a high-performance, integrated power module that offers a compact, efficient, and reliable solution for a wide range of applications.
