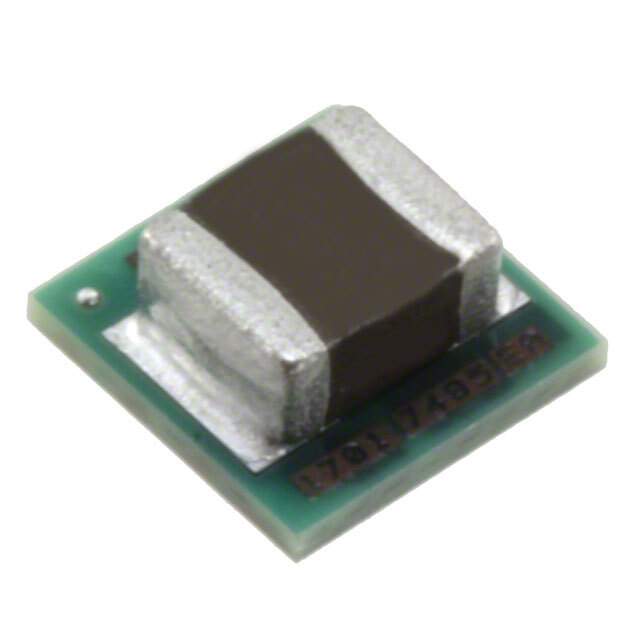

Introducing the LMZ21701SILT from Texas Instruments

The LMZ21701SILT is a high-efficiency, nano module power solution from Texas Instruments that simplifies the design of complex power systems. This compact, easy-to-use module integrates an advanced DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. With its exceptional power density, the LMZ21701SILT is ideal for space-constrained applications.

Key Features

• Integrated Power Solution: The LMZ21701SILT combines a DC/DC converter with power components to provide an efficient, compact power module.
• Wide Input Voltage Range: It operates over a 3V to 17V input voltage range, making it versatile for various applications.
• High Output Current: This module is capable of delivering up to 1A of output current, suitable for a wide range of low-power applications.
• Adjustable Output Voltage: The output voltage is adjustable from 0.8V to 6V, allowing for flexibility in different design scenarios.
• High Efficiency: With an efficiency of up to 95%, the LMZ21701SILT ensures minimal power loss and heat generation.
• Small Footprint: The compact QFN package measures just 3mm x 3.5mm x 1.41mm, perfect for space-limited designs.
• Easy-to-Use: The module requires only minimal external components, significantly simplifying the design and reducing time to market.

Applications

The LMZ21701SILT is an excellent choice for powering FPGA, DSP, and microprocessor subsystems. It is also well-suited for use in industrial, healthcare, and consumer electronics where efficient power conversion is necessary in a small footprint. Its performance and ease of integration make it a go-to solution for designers looking to optimize their power systems without compromising on space or efficiency.

Conclusion

With its combination of high efficiency, flexible input and output voltage ranges, and compact size, the LMZ21701SILT from Texas Instruments represents a leading-edge solution for modern power supply designs. Whether you're working on portable devices, communications equipment, or sensitive industrial applications, the LMZ21701SILT provides a reliable, high-performance power module that meets the stringent requirements of today's electronic devices.
