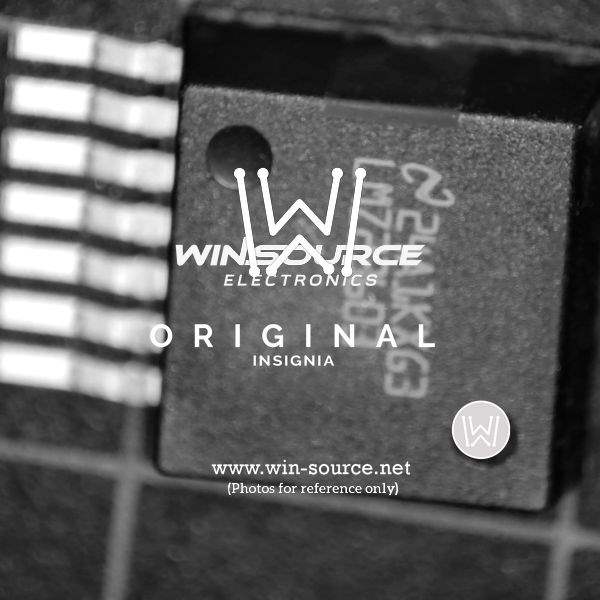

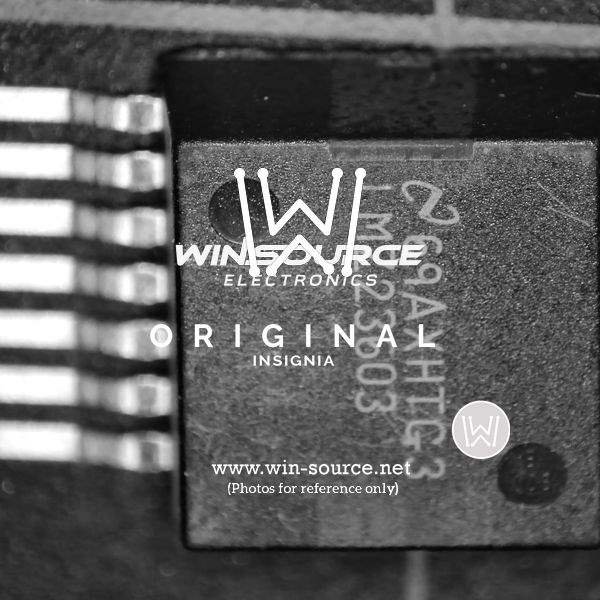

LMZ23603TZ/NOPB - Power Management Module by Texas Instruments

The LMZ23603TZ/NOPB is a high-performance, easy-to-use power module from Texas Instruments (TI), designed to meet the needs of a wide variety of applications. This power solution integrates a DC/DC converter, inductor, and passives into a single package, simplifying the design process and accelerating time to market.

With an input voltage range of 6V to 36V, the LMZ23603TZ/NOPB is capable of delivering an adjustable output voltage from 2.5V to 15V, which allows for flexibility in various design scenarios. The module can supply up to 3A of output current, making it suitable for powering FPGAs, microprocessors, DSPs, and other point-of-load applications that require a high current, adjustable voltage supply.

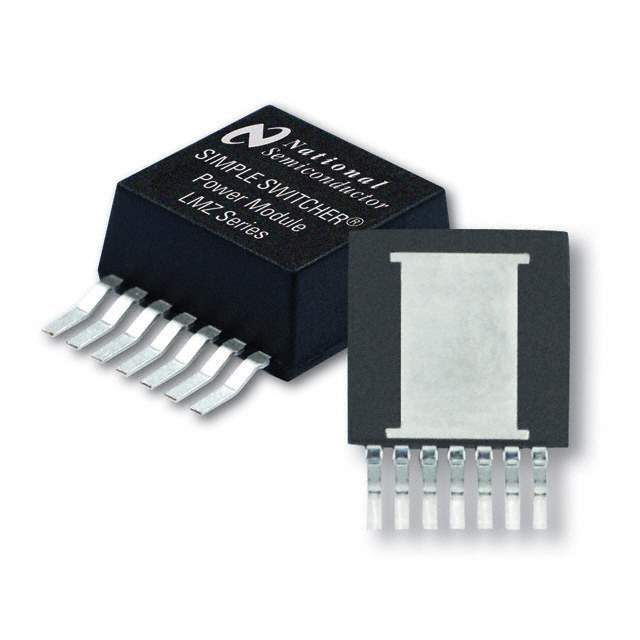

One of the key features of this power module is its innovative package design, which enhances thermal performance and allows for operation in high-temperature environments. The device is offered in a thermally-enhanced, easy-to-solder package that provides excellent power dissipation and low thermal impedance, which is critical for maintaining performance and reliability.

The LMZ23603TZ/NOPB also includes built-in protection features such as over-temperature protection, over-current protection, and under-voltage lockout, ensuring the safety and longevity of your application. Additionally, it features an adjustable switching frequency (from 200 kHz to 1 MHz) and synchronization capability, providing design flexibility and optimization of component size and efficiency.

For ease of use, this module requires only minimal external components, which reduces the complexity of the design and minimizes the board space required. The device is also RoHS compliant and lead-free, making it suitable for use in environmentally sensitive applications.

Whether you're designing power supplies for industrial, communications, automotive, or consumer electronics, the LMZ23603TZ/NOPB from Texas Instruments is a reliable and versatile choice that combines performance, convenience, and durability in a compact, integrated solution.
