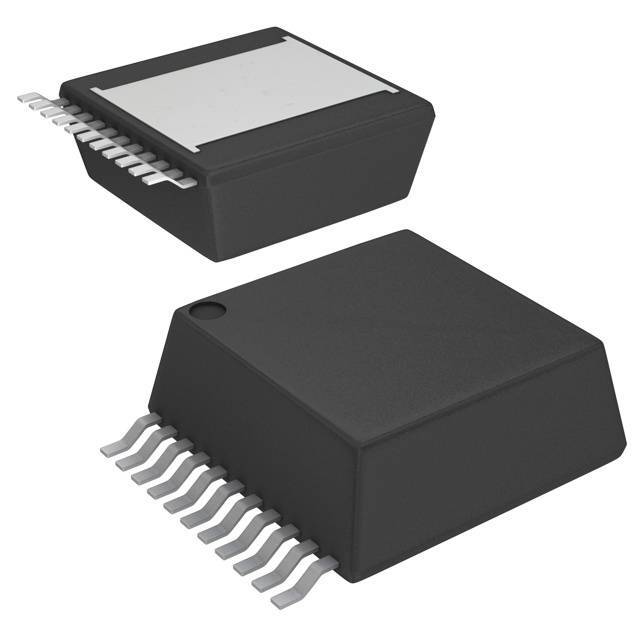

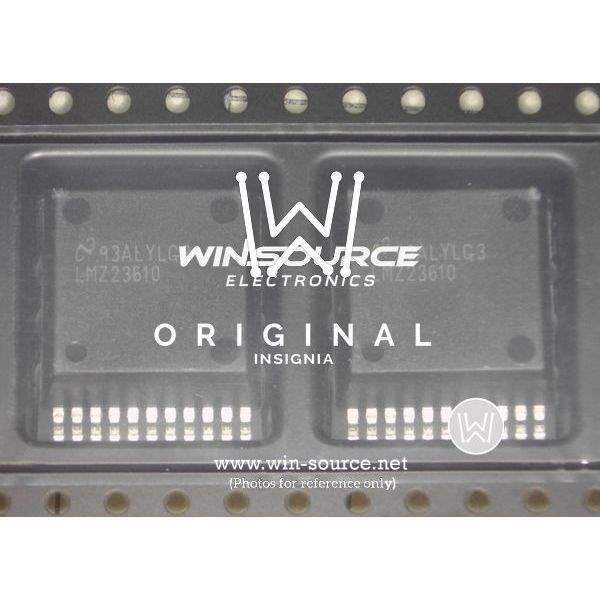

The LMZ23610TZE/NOPB is a robust, easy-to-use power solution from Texas Instruments, designed to meet the needs of a wide range of applications. This power module is part of the SIMPLE SWITCHER® family and is capable of delivering up to 10A of output current with exceptional power conversion efficiency, reliability, and thermal performance.

Key Features

• Output Voltage Range: The device provides an adjustable output voltage range from 0.8V to 6V, which allows for flexible use in various circuit designs.
• Input Voltage Range: It operates over an input voltage range of 6V to 36V, making it suitable for a variety of supply voltages.
• High Efficiency: With an integrated shielded inductor, the LMZ23610TZE/NOPB offers high efficiency and reduces EMI, which is crucial for sensitive electronic applications.
• Thermal Performance: The power module comes in an innovative package that enhances thermal performance and simplifies heat management in systems.
• Protection Features: It includes built-in features such as over-temperature protection, under-voltage lockout, and over-current protection, ensuring safe operation under various conditions.

Applications

The versatility of the LMZ23610TZE/NOPB makes it ideal for a range of applications, including:

• Telecommunications and Networking Equipment
• Industrial and Test Equipment
• Consumer Electronics
• Storage Systems and Servers

Quality and Reliability

As with all Texas Instruments products, the LMZ23610TZE/NOPB is manufactured to the highest quality standards, ensuring reliability and performance in the field. The device is also RoHS compliant and lead-free, reflecting TI's commitment to environmental sustainability.

Part Number Explanation

The part number LMZ23610TZE/NOPB breaks down as follows:

• LMZ - Product Family (SIMPLE SWITCHER)
• 23610 - 10A Output Current Capability
• TZE - Package Code (Thermally Enhanced)
• NOPB - No Lead (Pb) / RoHS Compliant

With its robust design and comprehensive feature set, the LMZ23610TZE/NOPB from Texas Instruments stands out as a superior choice for designers looking for a high-performance, integrated power solution.
