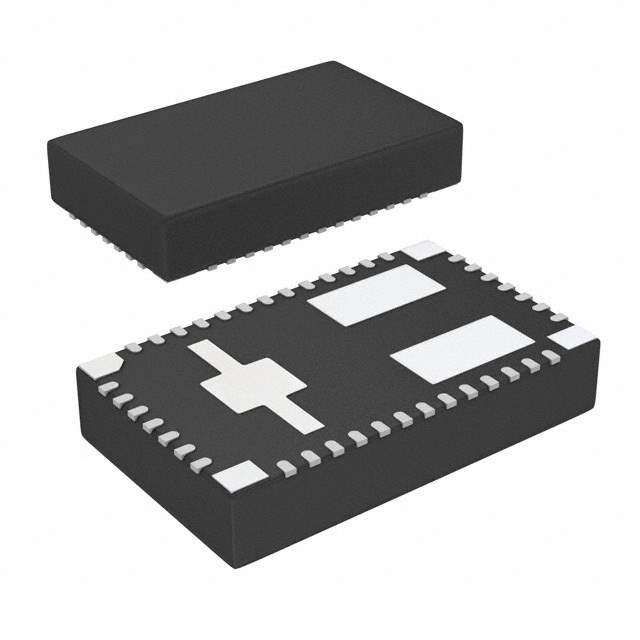

LMZ31506HRUQT

Part No LMZ31506HRUQT
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description DC/DC CONVERTER 1.2-5.5V 33W
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series SIMPLE SWITCHER?
Packaging Reel(TR)
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 1.7V
Voltage - Input (Max) 14.5V
Voltage - Output 1 1.2 ~ 5.5 V
Current - Output (Max) 6A
Applications ITE (Commercial)
Features OCP, OTP, UVLO
Mounting Style SMD/SMT
Package 47-QFN
Size / Dimension 0.60" L x 0.36" W x 0.11" H (15.2mm x 9.2mm x 2.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 94%
Win Source Part Number 144020-LMZ31506HRUQT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LMZ31506HRUQT CAD Model

Description

The LMZ31506HRUQT is a high-performance, easy-to-use power module from Texas Instruments, a leading global semiconductor company. This product is part of TI's SIMPLE SWITCHER® power module family and is designed to simplify power supply design while delivering exceptional performance.

  • Output Current: Up to 6A.
  • Input Voltage Range: 2.95V to 17V.
  • Output Voltage: Adjustable from 0.6V to 3.6V.
  • Efficiency: Up to 95%.
  • Protection Features: Over-current protection, over-temperature protection, and under-voltage lockout.
  • Soft-Start Time: Adjustable.
  • Package: QFN.

In conclusion, the LMZ31506HRUQT from Texas Instruments is a high-performance, easy-to-use power module that delivers exceptional efficiency, safety, and flexibility.
