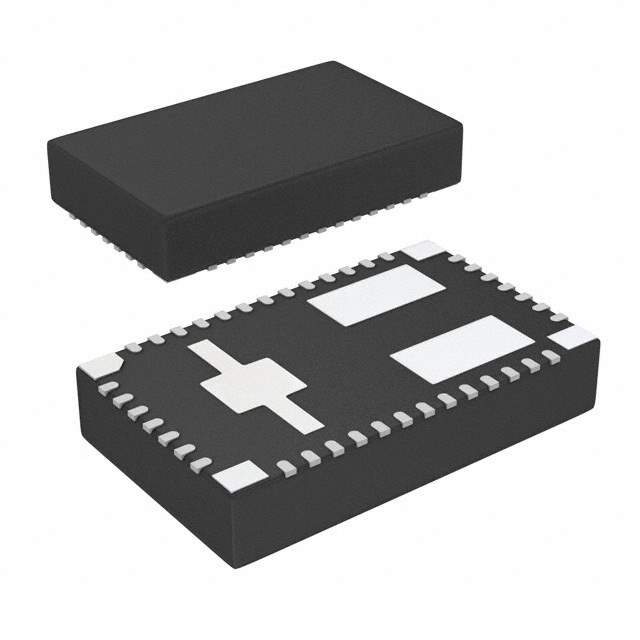

The LMZ31506RUQR from Texas Instruments is a highly efficient, easy-to-use power module that integrates a DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This advanced power solution is designed to simplify the design of power management systems and accelerate the product development cycle.

Key Features

• Output Voltage Range: 0.6V to 3.6V with ±1.5% output voltage accuracy over line, load, and temperature.
• Input Voltage Range: 2.95V to 14.5V, suitable for a variety of applications including industrial, communications, and infrastructure.
• High Efficiency: Integrated power stages and an optimized inductor enable efficiencies up to 95%.
• Output Current: Capable of delivering up to 6A of continuous output current.
• Compact Size: The QFN package measures just 16mm x 16mm x 4mm, ideal for space-constrained applications.
• Thermal Performance: Enhanced thermal dissipation allows for reliable operation over a wide temperature range.
• Protection Features: Includes over-temperature protection, under-voltage lockout, over-voltage protection, and short-circuit protection.
• Adjustable Switching Frequency: Allows for optimization between efficiency and external component size.
• Power Good Output: Provides a power-good signal when the output voltage is within regulation.

Applications

The LMZ31506RUQR is versatile and can be used in various applications, including:

• Telecommunications Infrastructure
• Networking Equipment
• Industrial Systems
• Test and Measurement
• Storage Systems

With its comprehensive features and robust design, the LMZ31506RUQR power module from Texas Instruments is an excellent choice for designers looking for a high-performance, reliable, and easy-to-implement power management solution.
