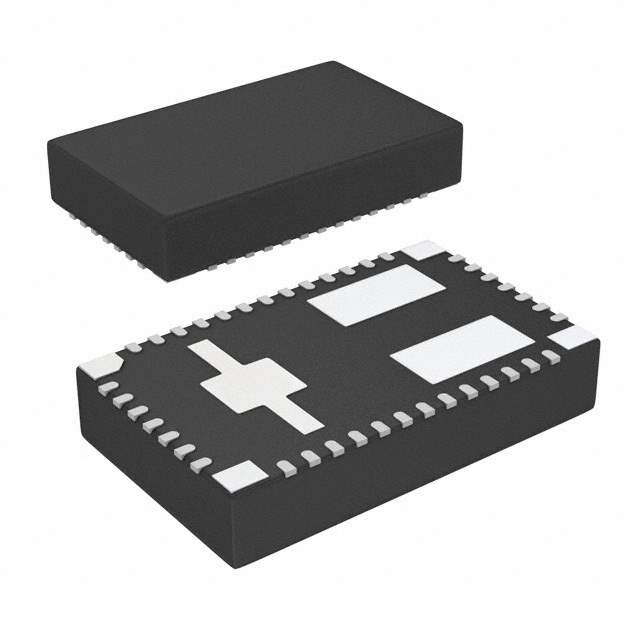

The LMZ31506RUQT is a high-performance, easy-to-use power module from Texas Instruments (TI), designed to meet the needs of demanding power supply applications. This innovative module integrates a DC/DC converter, inductor, and passives into a compact QFN package, simplifying the design process and reducing the time to market for product developers.

Key Features:

• Integrated Power Solution: The LMZ31506RUQT combines a 6A step-down converter with power inductors and passives in a single package, enabling a streamlined design with minimal external components.
• Efficient Performance: With an efficiency of up to 95%, this power module can deliver a high level of power without generating excessive heat, making it suitable for high-density applications.
• Wide Input Voltage Range: The module operates over a wide input voltage range of 4.5V to 14V, accommodating various supply voltages and offering flexibility in system design.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.6V to 5.5V, catering to a broad spectrum of power requirements for different ICs and systems.
• Compact Size: The QFN package measures just 16mm x 16mm x 4mm, allowing for high power density and saving precious board space in space-constrained applications.
• Thermal Performance: The LMZ31506RUQT is designed with excellent thermal performance in mind, featuring an integrated heat spreader that helps to dissipate heat effectively.
• Protection Features: It includes over-temperature protection, over-current protection, and under-voltage lockout, ensuring the safety and reliability of the power supply and the system it powers.

Applications:

The versatility of the LMZ31506RUQT makes it ideal for a wide array of applications, including but not limited to telecommunications, networking, industrial, and test equipment. Its robust design and comprehensive feature set ensure that it can meet the stringent requirements of complex electronic systems while providing a high level of efficiency and reliability.

Overall, the LMZ31506RUQT from Texas Instruments is a sophisticated power solution that offers designers a high level of integration, performance, and convenience, significantly reducing design complexity and enhancing the overall performance of the end product.
