LP2951CSD/NOPB

Part No LP2951CSD/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V/ADJ 0.1A 8WSON
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Adjustable (Fixed)
Number of Regulators 1
Maximum Input Voltage 30V
Nominal Output Voltage (Min/Fixed) 1.24V (5V)
Maximum Output Voltage 29V
Dropout Voltage-Max 0.6V @ 100mA
Output Current 100mA
Operating Supply Current 120μA to 14mA
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed or Adjustable
Output Voltage 5V, 1.24 V to 29 V
Voltage - Dropout (Typical) 0.38V @ 100mA
Mounting SMD (SMT)

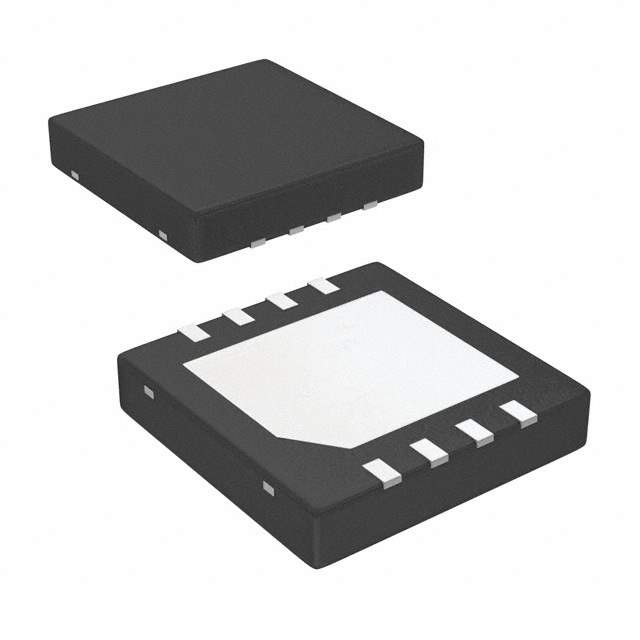

Case / Package 8-WSON (4x4)
Win Source Part Number 104362-LP2951CSD/NOPB
Ultra Librarian 3D Model Ultra Librarian LP2951CSD/NOPB CAD Model

Description

The LP2951CSD/NOPB is a high-quality, low-dropout voltage regulator from Texas Instruments, a leading global semiconductor company. This product is a part of the LP295x series, which is renowned for its exceptional performance and reliability.

This voltage regulator is designed to provide a variety of features while maintaining simplicity and efficiency. It is capable of delivering a 100 mA output, making it suitable for a wide range of applications. It offers a low-dropout voltage and a set output voltage that can be adjusted from 1.24V to 29V, providing flexibility and versatility for different system requirements.

It also features an error flag output that warns of a low output voltage, often due to falling input voltage. This can prevent system malfunctions and failures, thus enhancing the overall safety and reliability of the system.

Another notable feature of the LP2951CSD/NOPB is its superior power supply rejection ratio (PSRR), which allows it to maintain stable output voltage despite variations in the input voltage. This ensures consistent performance and protects the system from potential damage caused by voltage fluctuations.

The LP2951CSD/NOPB also includes a shutdown function that reduces the current consumption, which is particularly useful for battery-powered systems. When the device is in shutdown mode, the output voltage drops to zero, and the battery life is extended.

Texas Instruments has designed the LP2951CSD/NOPB to operate over a wide temperature range, from -40°C to 125°C, making it suitable for use in harsh environments. This device comes in an 8-pin SOIC package, which is compact and easy to integrate into various system designs.

In conclusion, the LP2951CSD/NOPB from Texas Instruments is a high-performance, feature-rich voltage regulator that offers flexibility, reliability, and efficiency. Whether it's for use in battery-powered devices, automotive applications, or other electronic systems, this voltage regulator delivers consistent, high-quality performance.
