Overview of Texas Instruments LP3961EMPX-1.8

The Texas Instruments LP3961EMPX-1.8 is a high-performance, low-dropout (LDO) linear voltage regulator designed to deliver a fixed output voltage of 1.8V with an output current up to 800mA. This regulator is part of the LP396x series, which is known for its low dropout voltage and low quiescent current, making it an ideal solution for battery-powered devices and other applications where power efficiency is critical.

Key Features

• Output Voltage: Provides a stable 1.8V output, which is essential for powering sensitive electronics that require a precise voltage level.
• High Output Current: Capable of delivering up to 800mA of output current, suitable for a wide range of applications.
• Low Dropout Voltage: The device has a low dropout voltage, allowing it to continue regulating the output voltage even when the input-to-output voltage differential is minimal.
• Excellent Load and Line Regulation: Maintains a consistent output voltage despite variations in input voltage and load, ensuring reliable performance.
• Low Quiescent Current: With a low quiescent current, the LP3961EMPX-1.8 helps to extend battery life in portable applications.
• Thermal Shutdown and Overcurrent Protection: Built-in safety features protect the device and the application from damage due to overheating and excessive current.
• Fast Transient Response: The regulator quickly responds to changes in load, providing stable power supply to the load.

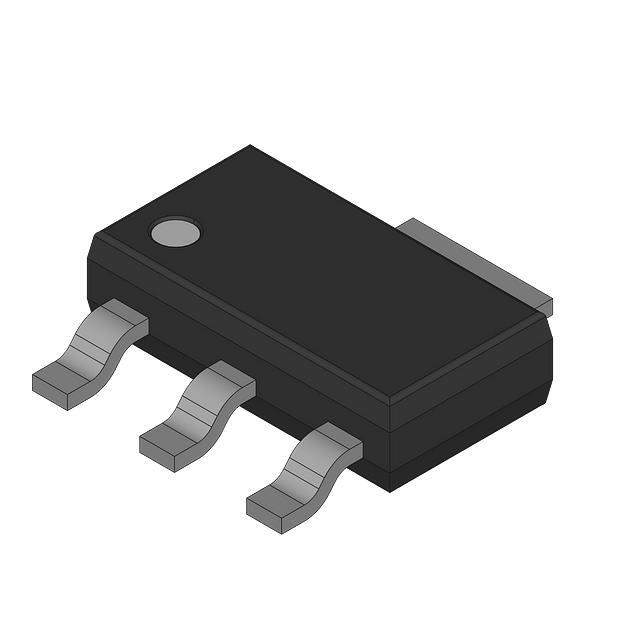

• Small SOT-223 Package: The compact SOT-223 package saves space on the PCB and is suitable for space-constrained applications.

Applications

The LP3961EMPX-1.8 is versatile and can be used in a variety of applications, including:

• Portable and battery-powered devices
• Wireless communication equipment
• Microcontrollers and digital logic supplies
• Notebook and laptop computers
• Consumer electronics

With its combination of high performance, reliability, and compact form factor, the Texas Instruments LP3961EMPX-1.8 is an excellent choice for designers looking to optimize their power management solutions.
