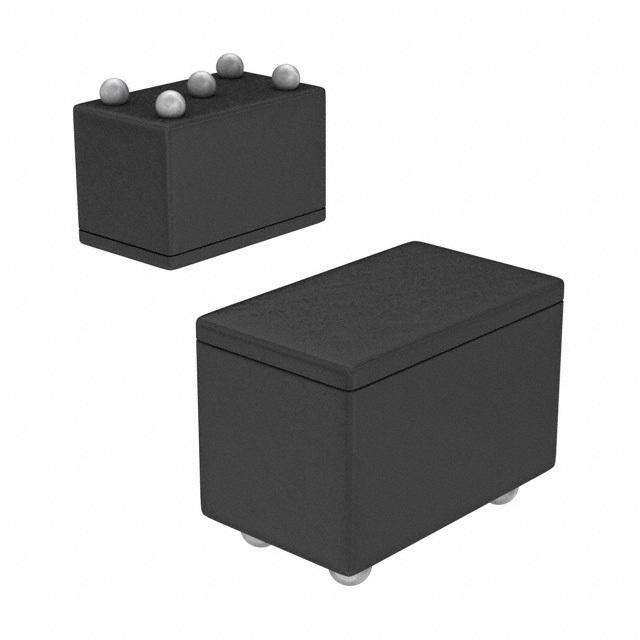

Same model may have multiple batches, images only for reference.
LP3985IBP-3.3/NOPB Texas Instruments
Same model may have multiple batches, images only for reference.

LP3985IBP-3.3/NOPB

Part No LP3985IBP-3.3/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V 0.15A 5DSBGA
Datasheet
LP3985IBP-3.3/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 6V
Nominal Output Voltage (Min/Fixed) 3.3V
Dropout Voltage-Max 0.1V @ 150mA
Output Current 150mA
Operating Supply Current 150μA to 250μA
PSRR 50dB to 40dB (1kHz to 10kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 3.3V
Voltage - Dropout (Typical) 0.06V @ 150mA
Mounting SMD (SMT)
Case / Package 5-DSBGA
Win Source Part Number 129237-LP3985IBP-3.3/NOPB
Ultra Librarian 3D Model Ultra Librarian LP3985IBP-3.3/NOPB CAD Model

Description

The LP3985IBP-3.3/NOPB is a high-performance, low-dropout regulator from Texas Instruments, a leading global semiconductor company. This product is designed to meet the rigorous requirements of today's demanding electronic devices, offering a perfect blend of power, performance, and efficiency.

  • Input Voltage Range: 2.5V to 6V
  • Output Current: 150mA
  • Output Voltage: 3.3V
  • Features: Low dropout voltage, shutdown feature (reduces supply current to less than 1µA), built-in current limit and thermal protection, high PSRR (75dB at 1kHz)
  • Package: Compact, 5-pin SOT-23
  • Compliance: RoHS compliant, lead-free
