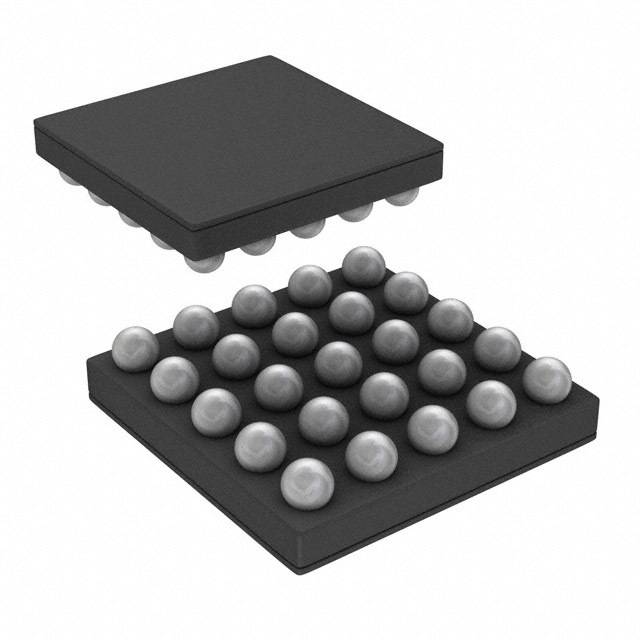

Product Overview: LP5526TL/NOPB by Texas Instruments

The LP5526TL/NOPB is a versatile, high-performance LED driver designed by Texas Instruments to cater to a wide array of lighting solutions. This device is particularly engineered to provide efficient power management for LEDs, making it an ideal choice for portable and battery-powered applications where energy efficiency is critical.

Key Features

• Programmable LED Driver: The LP5526TL/NOPB comes with an integrated programmable core for LED lighting effects, providing designers with the flexibility to create complex lighting sequences and patterns without the need for additional microcontroller support.
• Energy Efficient: With its high efficiency and low quiescent current, this LED driver ensures minimal power wastage, thereby extending battery life in portable devices.
• Independently Controlled Outputs: It features 9 output channels, each of which can be independently controlled, thereby offering precise control over the brightness and color mixing of multiple LEDs.
• Charge Pump Technology: The device utilizes a 1x/1.5x/2x fractional charge pump to maintain consistent LED brightness, even when the input voltage fluctuates.
• Flexible Power Supply: The LP5526TL/NOPB operates over a wide input voltage range of 2.7V to 5.5V, making it compatible with a variety of power sources.

Applications

The LP5526TL/NOPB is suitable for a broad spectrum of applications, including but not limited to:

• Smartphones and Tablets
• Portable Media Players
• Backlighting for LCD displays
• Indicator and Fun Lights
• General LED Lighting

Environmental and Quality Certifications

This product is offered in a lead-free, 20-pin QFN package and is characterized for operation over a temperature range of -40°C to 85°C. The LP5526TL/NOPB complies with Texas Instruments' quality and reliability standards, ensuring high performance and durability for the end-user.

In conclusion, the LP5526TL/NOPB from Texas Instruments stands out as a robust and flexible LED driver solution that can empower designers to innovate and create energy-efficient lighting solutions across a variety of applications.
