Product Overview: LP8553TLE/NOPB

The LP8553TLE/NOPB is a high-efficiency, mid-power, programmable LED driver designed by Texas Instruments to cater to the growing needs of advanced lighting solutions. This LED driver is particularly suited for backlighting LCD displays used in notebooks, monitors, and televisions, where consistent and high-quality light output is essential.

Key Features

• High Efficiency: The LP8553TLE/NOPB boasts an impressive high-power efficiency, which helps in reducing the heat generated and extends the life of the product.
• Programmable: With an integrated EEPROM, this LED driver allows for programmable settings, enabling the user to customize the backlighting characteristics according to specific requirements.
• Multiple LED String Support: It supports up to six LED strings with high precision current matching, ensuring uniform brightness across the display.
• Adaptive Power Supply: It is designed to operate efficiently over a wide range of power supplies, accommodating various system designs.
• Phase Shift PWM Dimming: This feature reduces audible noise and eliminates flicker, enhancing the visual experience.
• Protection Features: The LP8553TLE/NOPB comes with built-in open LED and over-temperature protection, ensuring safe operation under abnormal conditions.

Applications

The versatility of the LP8553TLE/NOPB makes it an ideal choice for a range of applications, particularly in the field of display technology. It is optimized for:

• LCD Backlighting
• Notebook Computers
• Desktop Monitors
• Televisions

Technical Specifications

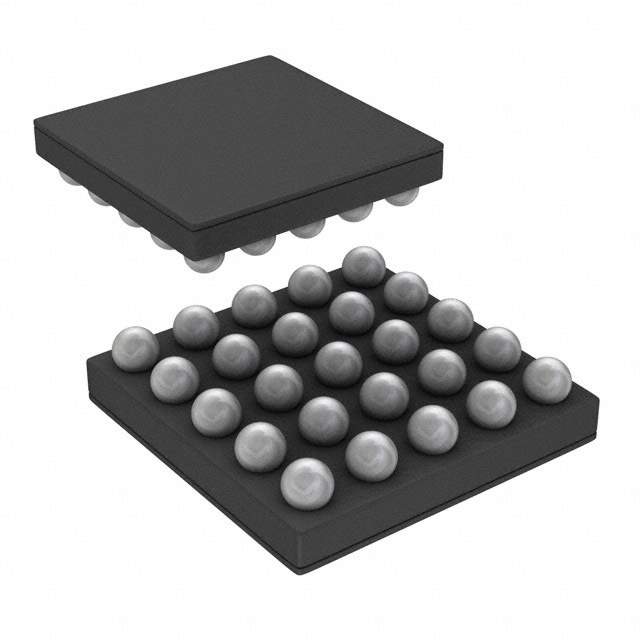

The device operates with an input voltage range of 4.5V to 24V, providing a flexible solution for various power supply configurations. With an adjustable frequency range from 100kHz to 1MHz, it allows for fine-tuning to avoid interference with other system frequencies. Additionally, the LP8553TLE/NOPB is available in a compact 24-pin QFN package, making it suitable for space-constrained applications.

Overall, the LP8553TLE/NOPB from Texas Instruments is a highly efficient, flexible, and reliable LED driver solution that meets the demands of modern backlighting applications, offering designers a high degree of control and quality in their lighting systems.
