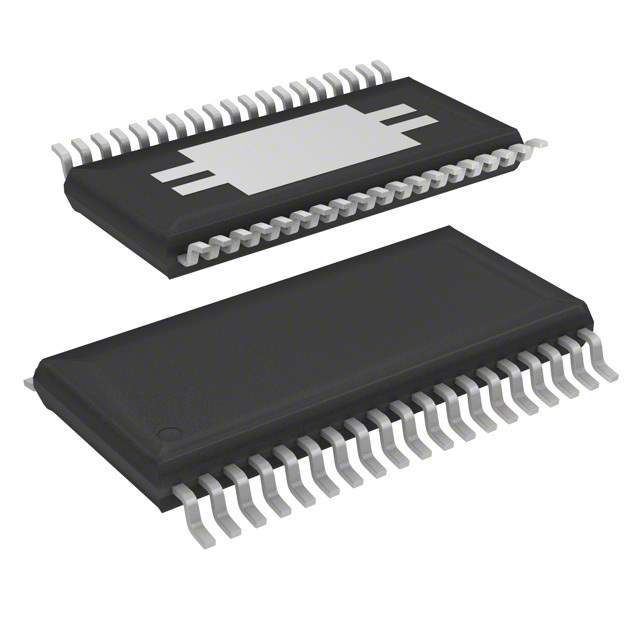

Introducing the LP8864QDCPRQ1 Automotive LED Driver from Texas Instruments

The LP8864QDCPRQ1 is a highly integrated, automotive-grade LED driver designed by Texas Instruments to meet the stringent requirements of automotive lighting systems. This advanced driver is capable of providing precision illumination and is ideal for automotive applications such as LED headlights, tail lights, and interior lighting, where reliability and performance are critical.

With its built-in 12-channel LED driver, the LP8864QDCPRQ1 offers exceptional flexibility and control, allowing for independent dimming and color mixing, which is essential for creating adaptive lighting solutions in vehicles. Each channel can be configured for up to 60 mA of current, with a total output current capability of 720 mA, ensuring ample power for a wide range of LED configurations.

The device operates over a wide input voltage range from 4.5V to 40V, making it robust against fluctuations commonly encountered in automotive power systems. This feature, combined with its integrated slew-rate controlled switching MOSFETs, ensures that the LP8864QDCPRQ1 can deliver stable and efficient performance under varying electrical conditions.

Safety is paramount in automotive applications, and the LP8864QDCPRQ1 addresses this with its suite of protection features. These include open LED detection, LED short-circuit protection, overvoltage, and overtemperature protection, ensuring that the device and the LEDs it controls are safeguarded against potential damage from electrical anomalies.

The LP8864QDCPRQ1 is also designed with communication in mind, featuring an I²C-compatible interface that allows for easy integration into existing automotive control systems. This enables precise control over lighting functions and diagnostics, providing designers with the ability to create sophisticated lighting patterns and effects while maintaining a high level of system integration.

In summary, the LP8864QDCPRQ1 from Texas Instruments is a top-tier solution for automotive LED lighting applications, offering robust performance, flexible control, and critical safety features. Its ability to drive multiple LEDs with precision and reliability makes it an excellent choice for manufacturers looking to enhance the lighting systems of modern vehicles.
