Overview of Texas Instruments MSP430F5636IZQWT

The MSP430F5636IZQWT is a high-performance microcontroller unit (MCU) designed by Texas Instruments, renowned for its low power consumption and advanced features. This microcontroller is part of the MSP430 family, which is well-suited for a wide range of applications such as industrial control systems, smart metering, home appliances, and portable medical devices.

Key Features

• Core: The MSP430F5636IZQWT is built around a 16-bit RISC architecture that offers a perfect balance between low power consumption and processing capability, enabling efficient operation in power-sensitive applications.
• Memory: It comes equipped with 32KB of RAM and 256KB of flash memory, providing ample space for complex applications and data storage without the need for external memory components.
• Digital and Analog Peripherals: The MCU includes a variety of peripherals such as digital I/O ports, multiple 16-bit timers, a 12-bit analog-to-digital converter (ADC), and a 12-bit digital-to-analog converter (DAC), offering versatile interfacing options.
• Low Power Modes: Multiple low-power modes enable the MCU to conserve energy during idle periods, making it ideal for battery-powered and energy-harvesting systems.
• Communication Interfaces: With integrated communication interfaces like UART, SPI, and I2C, the MSP430F5636IZQWT allows for easy connectivity with other devices and components in a system.

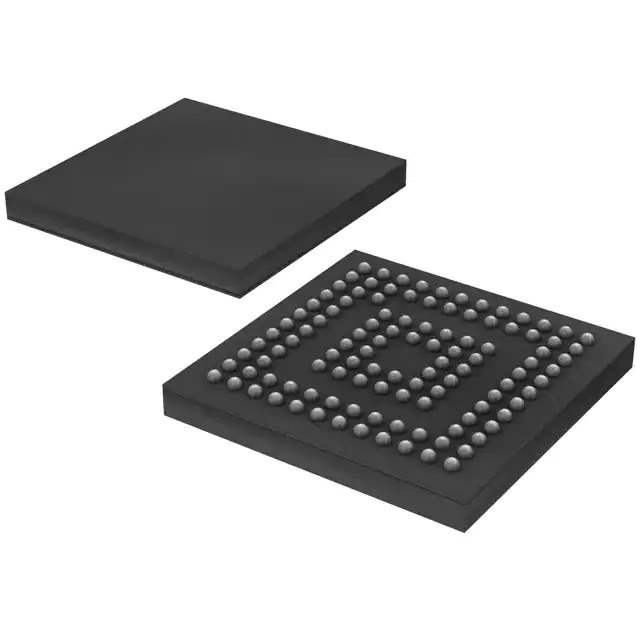

• Package: The device is available in a compact 113-pin NFBGA (Non-Friction Ball Grid Array) package, which is suitable for space-constrained applications.

Applications

The MSP430F5636IZQWT's combination of low power consumption and rich set of features makes it an excellent choice for a variety of applications, including but not limited to:

• Smart meters and energy monitoring systems
• Home and building automation
• Portable medical devices and fitness trackers
• Industrial control systems and sensors
• Agricultural and environmental monitoring equipment

Overall, the Texas Instruments MSP430F5636IZQWT MCU is a versatile and energy-efficient solution for developers looking to create sophisticated and reliable products in the embedded systems market.
